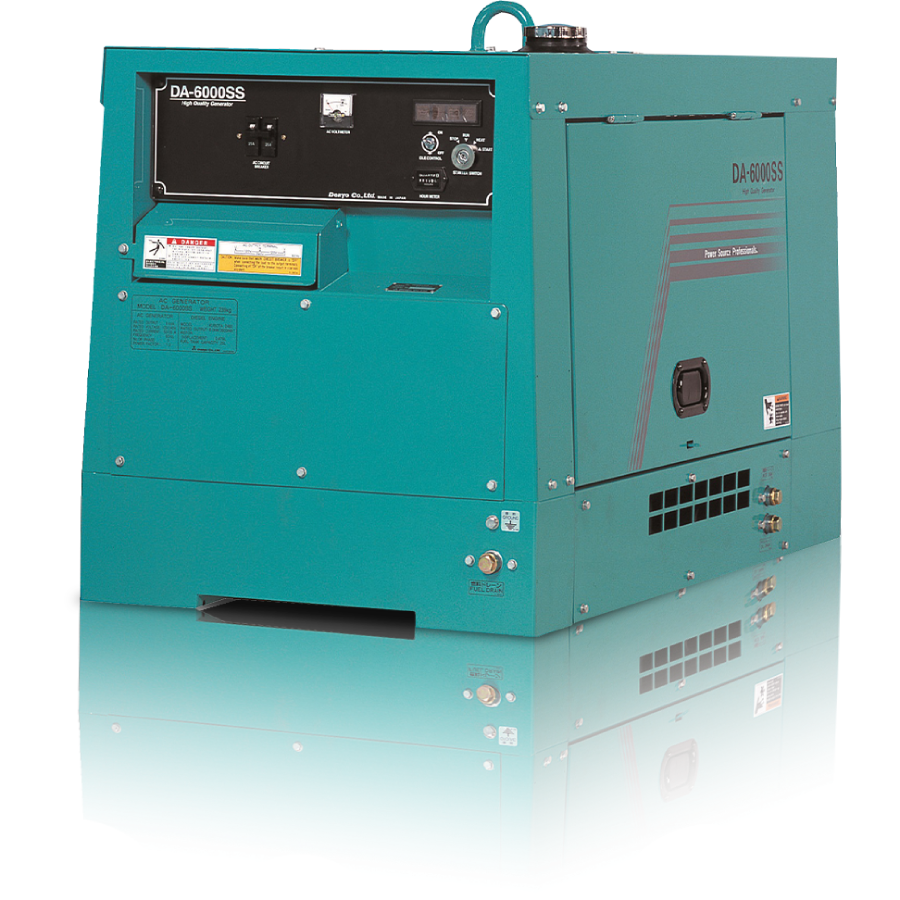

DA-6000SS
- Patented exciter system improves motor starting under load
- Brushless generator eliminates the need for voltage regulation
- Tool-free air bleeding is achieved simply by cranking
- Wide side-door openings enable fast maintenance access
Share to
Specifications Table
| Alternator | |
|---|---|
| Frequency (Hz) | 50 | 60 |
| Output Rating (kVA) | 5.5 | 6 |
| No. of Phases | Single Phase, 3-Wire |
| Rated Voltage | 50Hz: 100/200, 110/220, 115/230
60Hz: 100/200, 110/220, 115/230, 120/240 |
| Power Factor | 1.0 |
| Excitation | Revolving-Field, Self-Exciting New Brushless |
| Engine | |
| Maker & Model | Kubota Z482 |
| Type | 4-Cycle, Water-Cooled, Swirl Chambered |
| Output Rating (kW/rpm) | 6.5/3000 | 7.7/3600 |
| No. of Cylinders | 2 |
| Piston Displacement (L) | 0.479 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 2.1 | 2.6 |
| Bore × Stroke (mm) | 67 x 68 |
| Battery | 12 – 35 Ah |
| Fuel Tank Capacity (L) | 25 |
| Unit | |
| Length (mm) | 1140 |
| Width (mm) | 650 |
| Height (mm) | 795 |
| Dry Weight (kg) | 239 |
| Sound Level | |
| 7m dB (A) 3000/3600 min | 61 | 63 |
