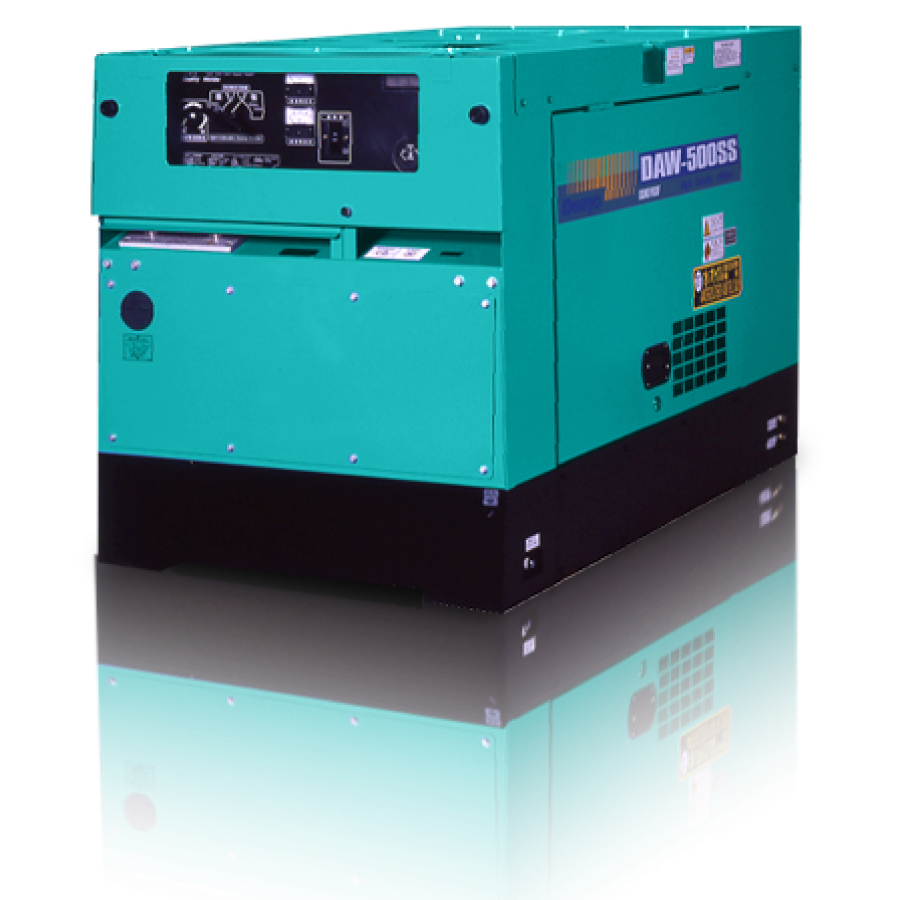

DAW-500SS
- 500-amp output supports heavy-duty industrial welding tasks
- Integrated generator function provides reliable auxiliary power
- Durable diesel engine ensures stable performance under load
- Compact design simplifies transport and fast site deployment
Share to
Specifications Table
| DC Welding Power | |
|---|---|
| Rated Output (kW) | 17.7 |
| Rated Current (A) | 460 |
| Rated Voltage (V) | 38.4 |
| Welding Current Range (A) | 40 – 500 |
| Welding Voltage Range (V) | – |
| Rated Duty Cycle (%) | 60 |
| Applicable Electrode (mm) | 2-8 |
| Generator Output | |
| Frequency (Hz) | 50 / 60 |
| Rated Output (kVA) | 3 |
| Rated Voltage (V) | 220 (100-240) |
| No. of Phases | Single-Phase, 2-Wire |
| Power Factor | 1.0 |
| Engine | |
| Maker & Model | Kubota D1703-KA |
| Type | 4-Cycle, Vertical, Water-Cooled with Radiator |
| Rated Output (kW) | 25.4 |
| Rated Speed (rpm) | 2800 |
| Displacement (L) | 1.647 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 5 |
| Fuel Tank Capacity (L) | 45 |
| Battery x Quantity | 95D31R x 1 |
| Unit | |
| Length (mm) | 1420 |
| Width (mm) | 800 |
| Height (mm) | 900 |
| Dry Weight (kg) | 505 |
| Sound Level | |
| 7m dB (A) | 65 |
