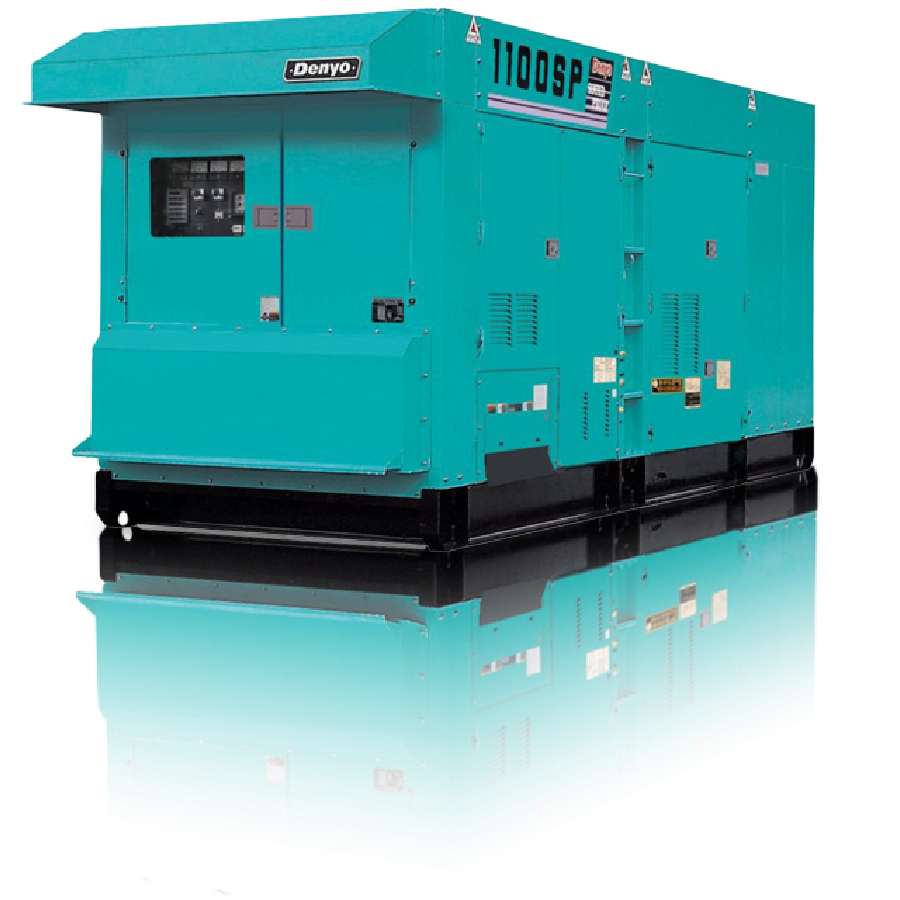

DCA-1100SPK
- Massive 1100 kVA capacity supports critical grid backup
- Multi-voltage architecture fits complex, large-scale power systems
- Optimized airflow reduces heat stress during operation
- Industrial-grade frame endures continuous heavy-load runtime
Share to
Specifications Table
| Alternator | |
|---|---|
| Frequency (Hz) | 50 | 60 |
| Output Rating (kVA) | Continuous: 1000 | 1100
Standby: 1100 | 1210 |
| No. of Phases | 3-Phase, 4-Wire |
| Rated Voltage | (3) Single Voltage |
| Power Factor | 0.8 (Lagging) |
| Excitation | Brushless, Rotating Exciter (With A.V.R) |
| Engine | |
| Maker & Model | Komatsu SAA12V140 |
| Type | Direct Injected, Turbocharged, Aftercooled |
| Output Rating | PS/rpm: 1171/1500 | 1324/1800
kW/rpm: 861/1500 | 974/1800 |
| No. of Cylinders-Bore × Stroke (mm) | 12-140×165 |
| Piston Displacement (L) | 30.480 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 152 | 169 |
| Lube Oil Sump Capacity (L) | 207 |
| Battery x Quantity | 145G51 × 4 or 155G51 x 4 |
| Fuel Tank Capacity (L) | 600 |
| Unit | |
| Length (mm) | 6510 (with visor) |
| Width (mm) | 2200 |
| Height (mm) | 2790 |
| Dry Weight (kg) | 13000 |
| Sound Level | |
| 7m dB (A) 1500/1800 rpm | 70 | 74 |
