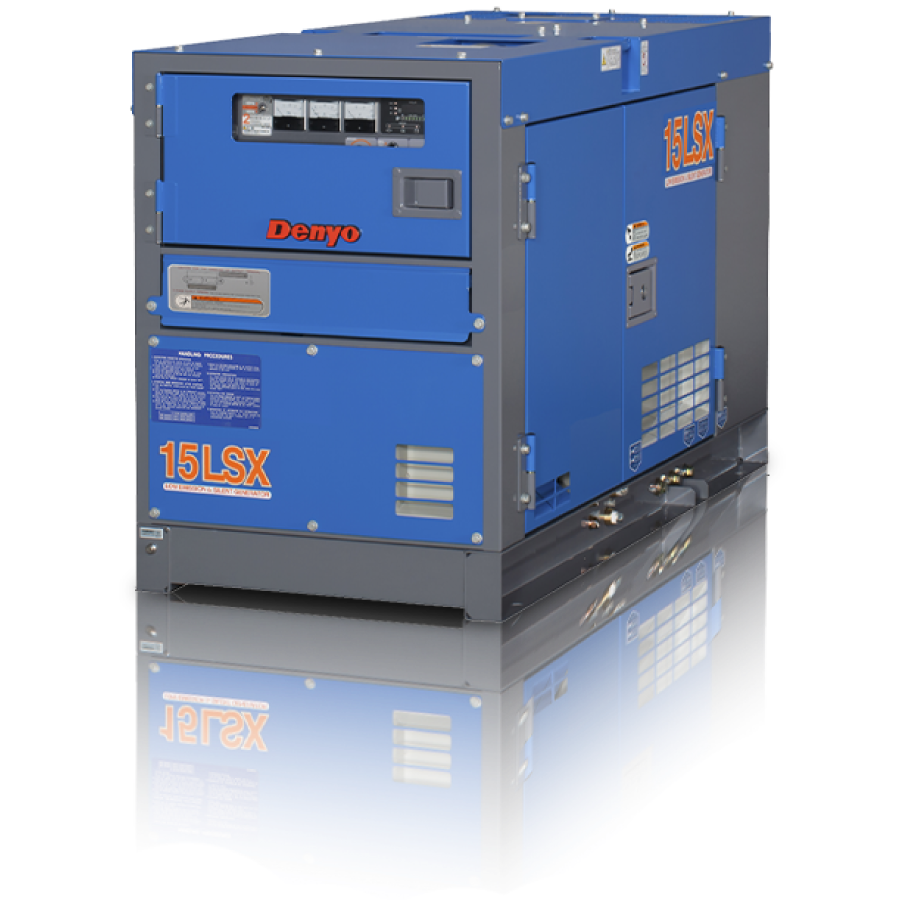

DCA-15LSX
- Patented exciter system improves motor starting under load
- Brushless generator eliminates the need for voltage regulation
- Tool-free air bleeding is achieved simply by cranking
- Wide side-door openings enable fast maintenance access
Share to
Specifications Table
| Alternator | |
|---|---|
| Frequency (Hz) | 50 | 60 |
| Output Rating (kVA) | 13 | 15 |
| No. of Phases | Single Phase, 2-Wire |
| Rated Voltage | 50Hz: 100/200
60Hz: 100/110/120/200/220/240 |
| Power Factor | 1.0 |
| Excitation | Brushless (with AVR) |
| Engine | |
| Maker & Model | Kubota V2203-K3A |
| Type | Inlined, Swirl Chambered |
| Output Rating | PS/rpm: 23/1500 | 27.1/1800
kW/rpm: 17/1500 | 19.9/1800 |
| No. of Cylinders | 4 |
| Piston Displacement (L) | 2.197 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 3.4 | 3.9 |
| Bore × Stroke (mm) | 87×92.4 |
| Battery x Quantity | 80D26R x 1 |
| Fuel Tank Capacity (L) | 62 |
| Unit | |
| Length (mm) | 1540 |
| Width (mm) | 650 |
| Height (mm) | 900 |
| Dry Weight (kg) | 580 |
| Sound Level | |
| 7m dB (A) | 61 | 64 |
