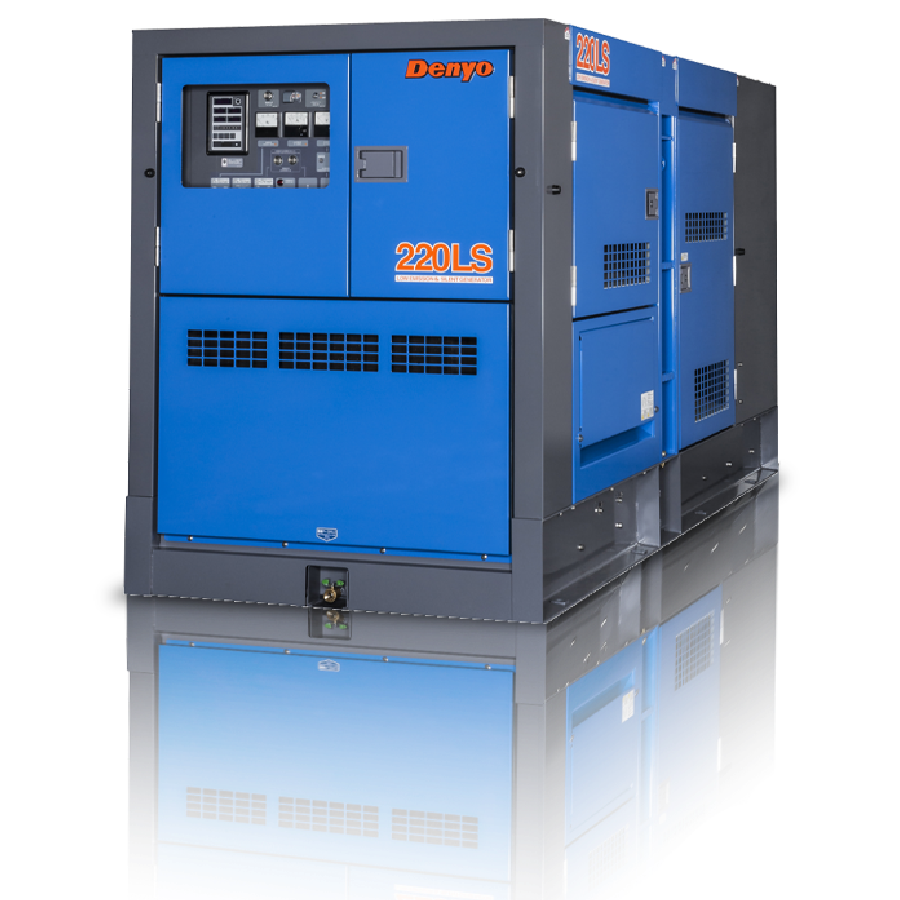

DCA-220LSIE
- High-capacity 200/220 kVA for heavy industrial use
- Fuel-efficient performance helps reduce operating costs
- Stage-III compliant engine meets strict emission standards
- Eco-Base improves environmental protection on-site
Share to
Specifications Table
| Alternator | |
|---|---|
| Frequency (Hz) | 50 | 60 |
| Output Rating (kVA) | Continuous: 200 | 220
Standby: 220 | 242 |
| No. of Phases | 3-Phase, 4-Wire |
| Rated Voltage | 50Hz: 190~220 / 380~440
60Hz: 190~240 / 380~480 |
| Power Factor | 0.8 (Lagging) |
| Excitation | Brushless, Rotating Exciter (With A.V.R) |
| Engine | |
| Maker & Model | Isuzu BH-6UZ1X |
| Type | Common Rail, Inlined, Direct Injected, Turbocharged |
| Output Rating | PS/rpm: 276/1500 | 312/1800
kW/rpm: 203/1500 | 230/1800 |
| No. of Cylinders-Bore × Stroke (mm) | 6-120×145 |
| Piston Displacement (L) | 9.839 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 33.1 | 36 |
| Lube Oil Sump Capacity (L) | 41 |
| Battery x Quantity | 145G51 x 2 or 155G51 x 2 |
| Fuel Tank Capacity (L) | 400 |
| Unit | |
| Length (mm) | 3600 |
| Width (mm) | 1350 |
| Height (mm) | 1750 |
| Dry Weight (kg) | 3710 |
| Sound Level | |
| 7m dB (A) 1500/1800 rpm | 63 | 65 |
