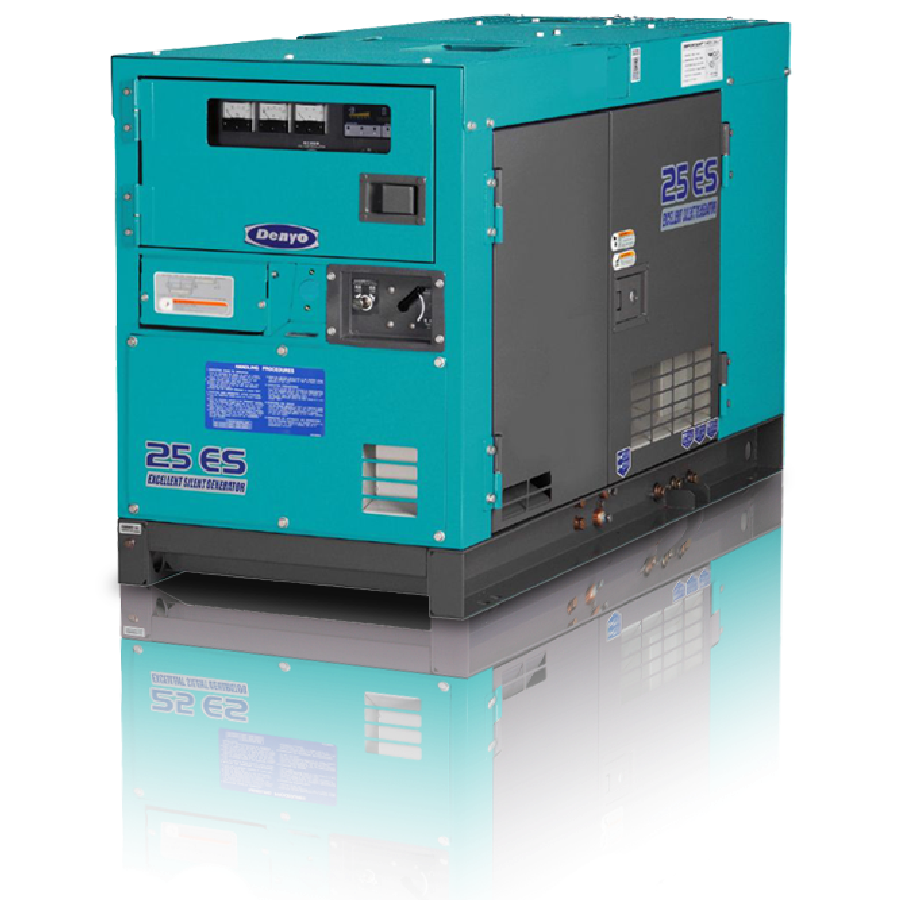

DCA-25ESK-DA
- Brushless AVR alternator delivers stable, high-quality output
- Fuel-efficient engine reduces operating cost and downtime
- Large service panels ensure quick maintenance access
- Compact soundproof design enables quieter worksite operation
Share to
Specifications Table
| Alternator | |
|---|---|
| Frequency (Hz) | 50 | 60 |
| Output Rating (kVA) | Continuous: 20 | 25
Standby: 22 | 27.5 |
| No. of Phases | 3-Phase, 4-Wire |
| Rated Voltage | 50Hz: 190~220 or 380~440
60Hz: 190~240 or 380~480 |
| Power Factor | 0.8 |
| Excitation | Brushless, Rotating Exciter (With A.V.R) |
| Engine | |
| Maker & Model | Kubota V2203-KB |
| Type | Inlined, Swirl Chambered |
| Output Rating | PS/rpm: 25/1500 | 32.2/1800
kW/rpm: 18.4/1500 | 23.7/1800 |
| No. of Cylinders-Bore × Stroke (mm) | 4-87×92.4 |
| Piston Displacement (L) | 2.197 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 3.9 | 4.9 |
| Lube Oil Sump Capacity (L) | 7.6 |
| Battery x Quantity | 12-60 × 1 |
| Fuel Tank Capacity (L) | 62 |
| Unit | |
| Length (mm) | 1540 |
| Width (mm) | 650 |
| Height (mm) | 900 |
| Dry Weight (kg) | 591 |
| Sound Level | |
| 7m dB (A) 1500/1800 rpm | 61 | 65 |
