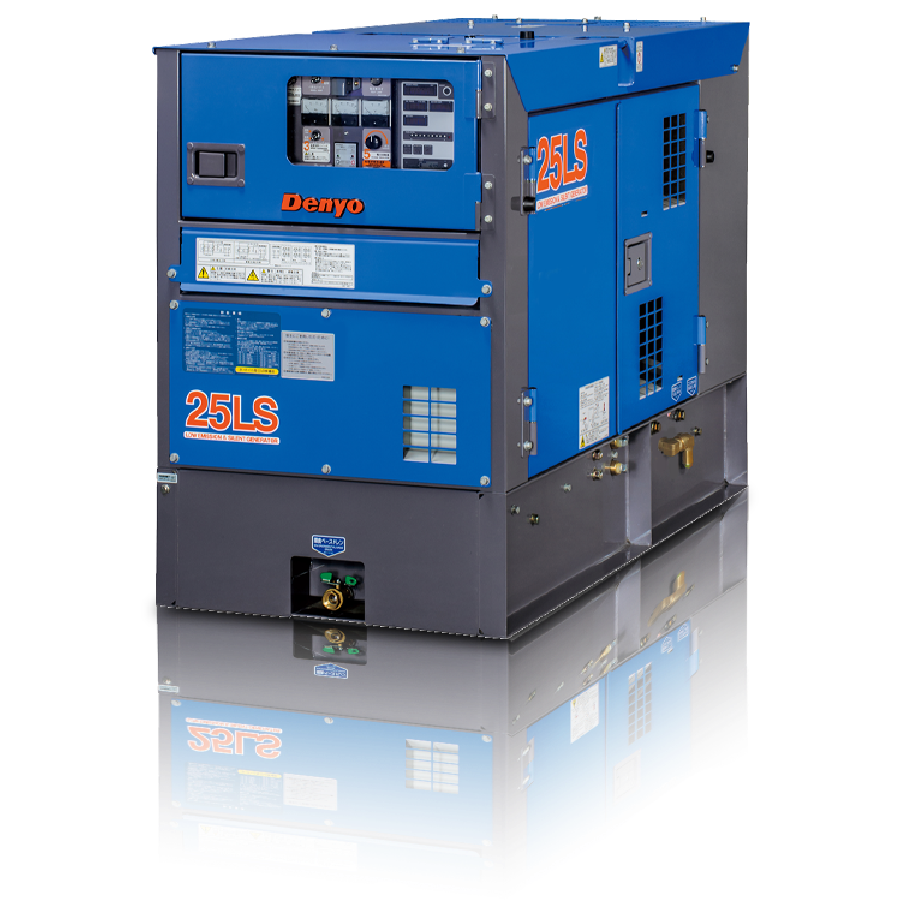

DCA-25LSKE
- One-touch phase switching simplifies single or 3-phase output
- Eco-Base prevents fuel spills and environmental impact
- Sized for tight urban worksites with limited access
- Electronic governor delivers a stable frequency output
Share to
Specifications Table
| Alternator | |
|---|---|
| Frequency (Hz) | 50 | 60 |
| Output Rating (kVA) | Continuous: 20 | 25
Standby: 22 | 27.5 |
| No. of Phases | 3-Phase, 4-Wire |
| Rated Voltage | 50Hz: 190~220 / 380~440
60Hz: 190~240 / 380~480 |
| Power Factor | 0.8 (Lagging) |
| Excitation | Brushless, Rotating Exciter (With A.V.R) |
| Engine | |
| Maker & Model | Kubota V2403-K3A |
| Type | Inlined, Swirl Chambered |
| Output Rating | PS/rpm: 25.9/1500 | 32.2/1800
kW/rpm: 19.1/1500 | 23.7/1800 |
| No. of Cylinders-Bore × Stroke (mm) | 4-87×102.4 |
| Piston Displacement (L) | 2.434 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 3.9 | 4.9 |
| Lube Oil Sump Capacity (L) | 9.7 |
| Battery x Quantity | 80D26R × 1 |
| Fuel Tank Capacity (L) | 70 |
| Unit | |
| Length (mm) | 1540 |
| Width (mm) | 700 |
| Height (mm) | 1045 |
| Dry Weight (kg) | 660 |
| Sound Level | |
| 7m dB (A) 1500/1800 rpm | 61 | 63 |
