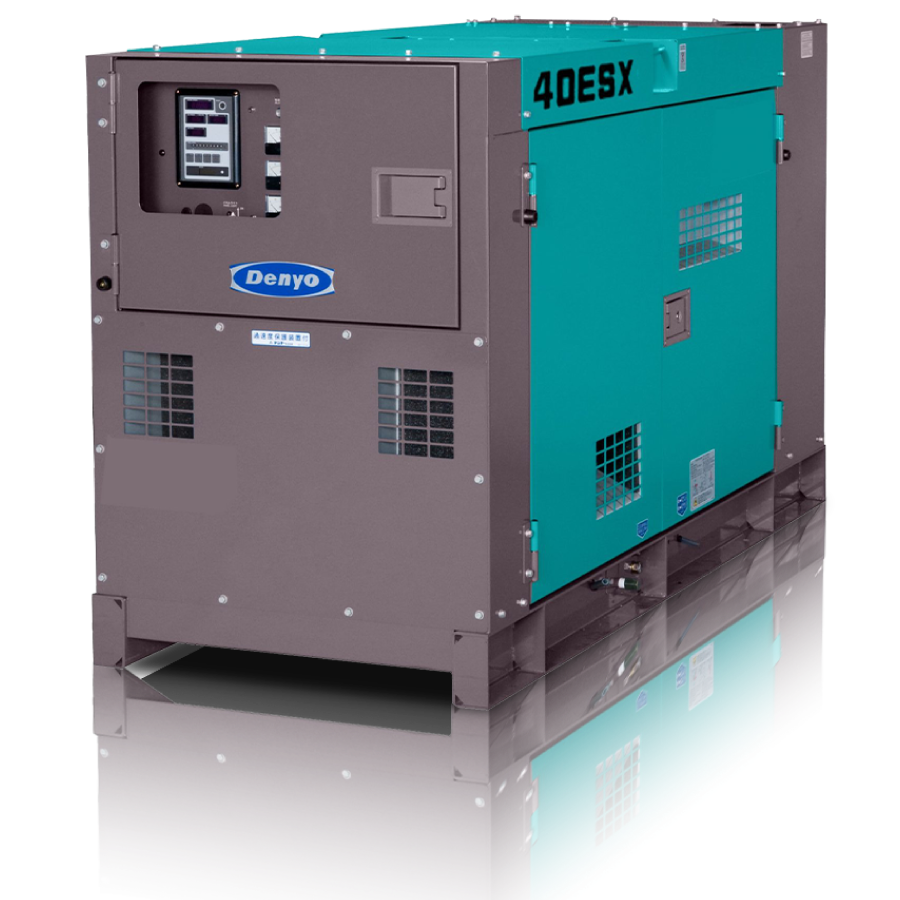

DCA-40ESX
- High-performance AVR maintains stable ±1% voltage
- Provides commercial-grade power for critical equipment
- Supports inverter, thyristor, and communication loads
- Optional ATS setup enables a reliable backup
Share to
Specifications Table
| Alternator | |
|---|---|
| Frequency (Hz) | 50 | 60 |
| Output Rating (kVA) | 33 | 40 |
| No. of Phases | Single Phase, 3-Wire |
| Rated Voltage | 50Hz: 100/200 ~ 110/220
60Hz: 100/200 ~ 120/240 |
| Power Factor | 1.0 |
| Excitation | Brushless (with AVR) |
| Engine | |
| Maker & Model | Isuzu BB-4BG1T |
| Type | Inlined, Direct Injected, Turbocharged |
| Output Rating | PS/rpm: 65.1/1500 | 77.6/1800
kW/rpm: 47.9/1500 | 57.1/1800 |
| No. of Cylinders | 4 |
| Piston Displacement (L) | 4.329 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 7.3 | 9.1 |
| Bore × Stroke (mm) | 105×125 |
| Battery x Quantity | 120E41R x 1 |
| Fuel Tank Capacity (L) | 125 |
| Unit | |
| Length (mm) | 2200 |
| Width (mm) | 880 |
| Height (mm) | 1250 |
| Dry Weight (kg) | 1180 |
| Sound Level | |
| 7m dB (A) | 61 | 64 |
