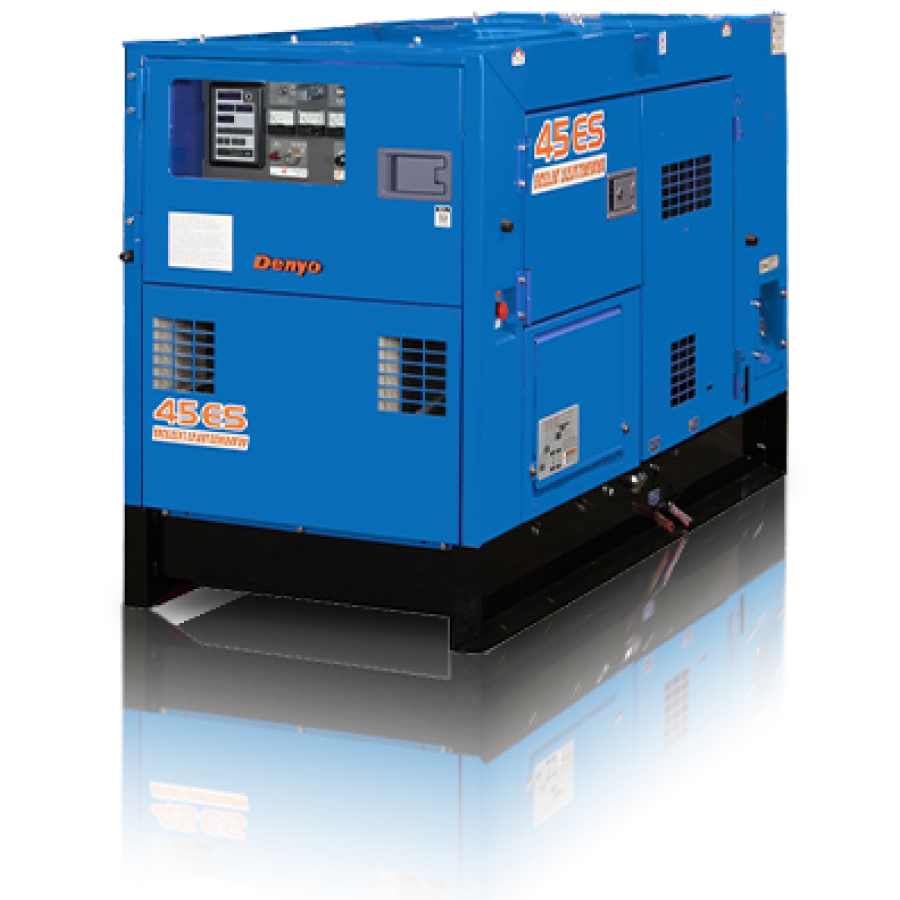

DCA-45ESY
- Wide dual-voltage range supports multiple regional standards
- Brushless AVR alternator delivers stable, precise voltage output
- Large access doors enable faster, easier maintenance work
- Soundproof construction enables quieter worksite operation
Share to
Specifications Table
| Alternator | |
|---|---|
| Frequency (Hz) | 50 | 60 |
| Output Rating (kVA) | Continuous: 37 | 45
Standby: 40.7 | 49.5 |
| No. of Phases | 3-Phase, 4-Wire |
| Rated Voltage | (5) Multi Voltage |
| Power Factor | 0.8 (Lagging) |
| Excitation | Brushless, Rotating Exciter (With A.V.R) |
| Engine | |
| Maker & Model | Yanmar 4TNV98T-GDG |
| Type | Inlined, Direct Injected, Turbocharged |
| Output Rating | PS/rpm: 51.2/1500 | 61.6/1800
kW/rpm: 37.7/1500 | 45.3/1800 |
| No. of Cylinders-Bore × Stroke (mm) | 4-98×110 |
| Piston Displacement (L) | 3.318 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 6.4 | 8 |
| Lube Oil Sump Capacity (L) | 11.1 |
| Battery x Quantity | 115D31R × 1 |
| Fuel Tank Capacity (L) | 100 |
| Unit | |
| Length (mm) | 1850 |
| Width (mm) | 880 |
| Height (mm) | 1315 |
| Dry Weight (kg) | 990 |
| Sound Level | |
| 7m dB (A) 1500/1800 rpm | 58 | 61 |
