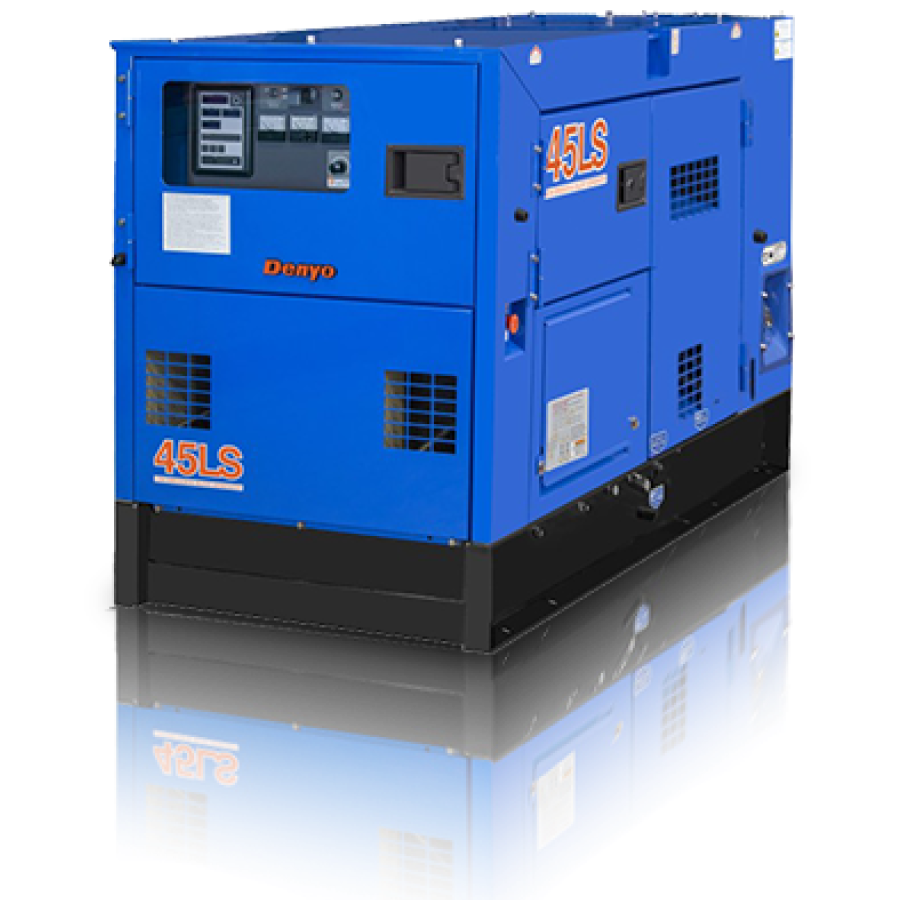

DCA-45LSK2
- Fuel-efficient performance reduces daily operating costs
- Stage-III compliant engine meets strict emission requirements

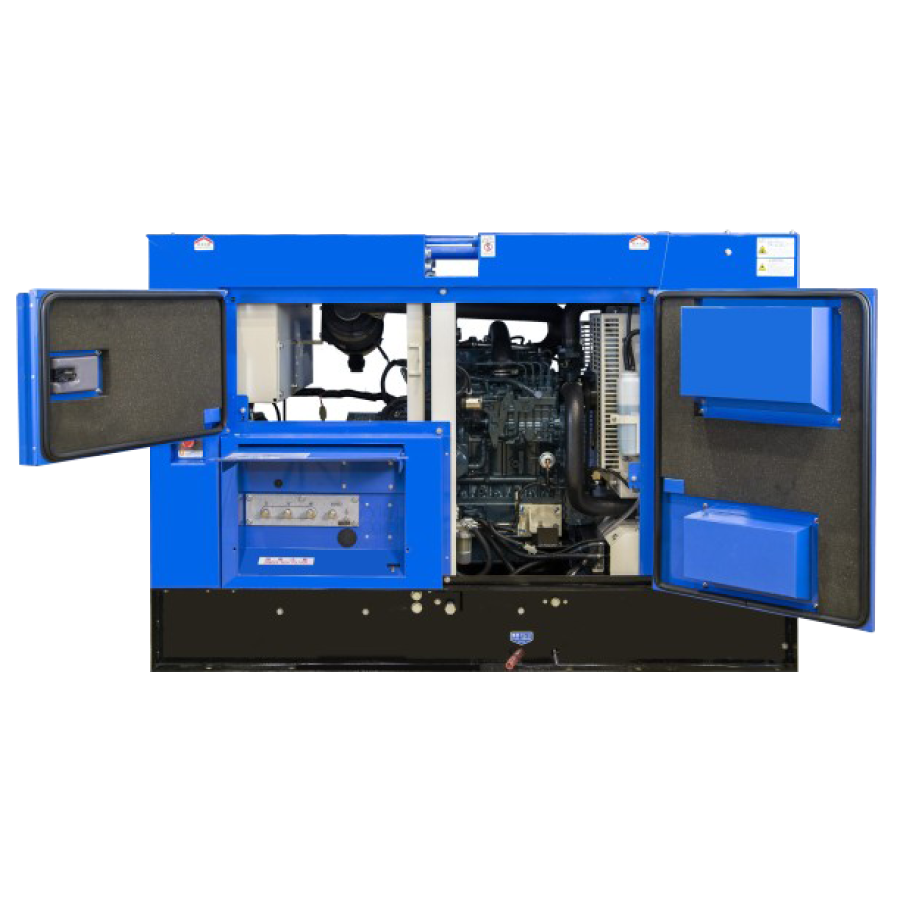

- Large access doors enable faster, easier maintenance work
- Optimized frame enables quicker transport between sites
Share to
Specifications Table
| Alternator | |
|---|---|
| Frequency (Hz) | 50 | 60 |
| Output Rating (kVA) | Continuous: 37 | 45
Standby: 37 | 45 |
| No. of Phases | 3-Phase, 4-Wire |
| Rated Voltage (V) | 190-220 | 190-240
380-440 | 380-480 |
| Power Factor | 0.8 (Lagging) |
| Excitation | Brushless, Rotating Exciter (With A.V.R) |
| Engine | |
| Maker & Model | Kubota V3600-T-K3A |
| Type | Inlined, Swirl Chambered |
| Output Rating | PS/rpm: 45/1500 | 51.3/1800
kW/rpm: 33.1/1500 | 37.7/1800 |
| No. of Cylinders-Bore × Stroke (mm) | 4-98×120 |
| Piston Displacement (L) | 3.620 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 7.1 | 8.9 |
| Lube Oil Sump Capacity (L) | 13.2 |
| Battery x Quantity | 115D31R × 1 |
| Fuel Tank Capacity (L) | 100 |
| Unit | |
| Length (mm) | 1850 |
| Width (mm) | 880 |
| Height (mm) | 1250 |
| Dry Weight (kg) | 935 |
| Sound Level | |
| 7m dB (A) 1500/1800 rpm | 57 | 60 |
