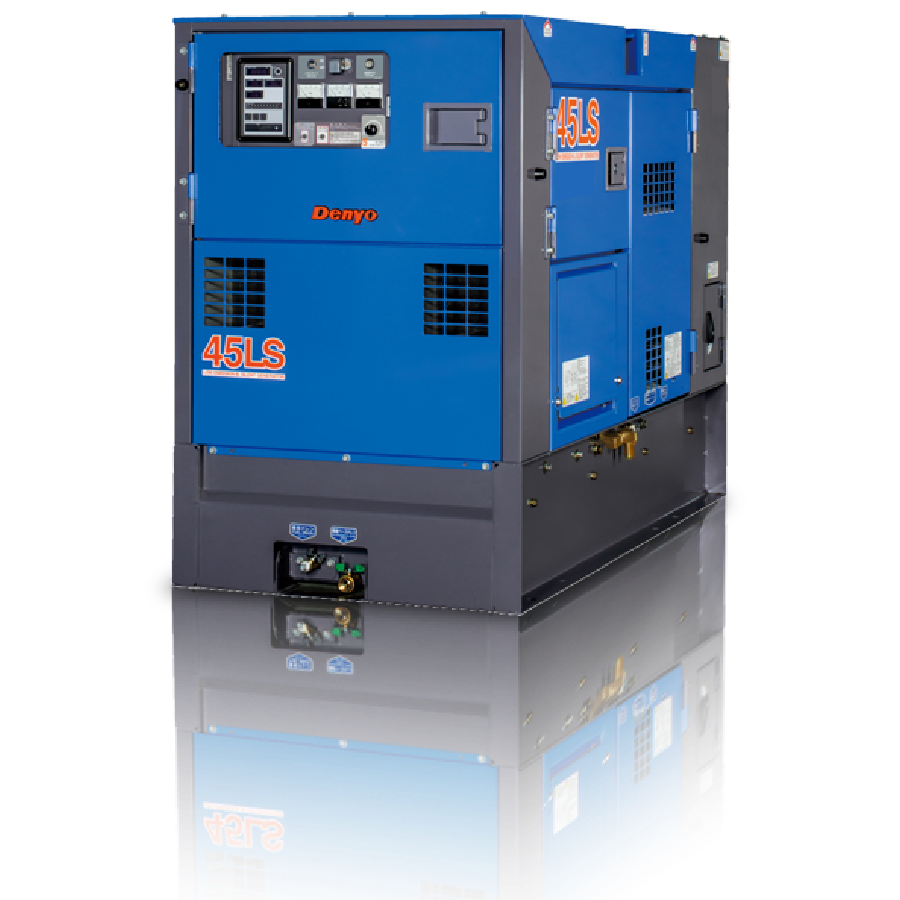

DCA-45LSKE
- Eco-Base prevents fuel spills and environmental impact
- Fuel-efficient performance helps reduce operating costs
- Stage-III compliant engine meets strict emission standards
- Optimized frame enables quicker transport between sites
Share to
Specifications Table
| Alternator | |
|---|---|
| Frequency (Hz) | 50 | 60 |
| Output Rating (kVA) | Continuous: 37 | 45
Standby: 38.9 | 47.3 |
| No. of Phases | 3-Phase, 4-Wire |
| Rated Voltage | 50Hz: 190~220 / 380~440
60Hz: 190~240 / 380~480 |
| Power Factor | 0.8 (Lagging) |
| Excitation | Brushless, Rotating Exciter (With A.V.R) |
| Engine | |
| Maker & Model | Kubota V3800-DI-T-K3A |
| Type | Inlined, Direct Injected, Turbocharged |
| Output Rating | PS/rpm: 51.6/1500 | 62/1800
kW/rpm: 38/1500 | 45.6/1800 |
| No. of Cylinders-Bore × Stroke (mm) | 4-100×120 |
| Piston Displacement (L) | 3.769 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 7 | 8.8 |
| Lube Oil Sump Capacity (L) | 13.2 |
| Battery x Quantity | 115D31R × 1 |
| Fuel Tank Capacity (L) | 100 |
| Unit | |
| Length (mm) | 1850 |
| Width (mm) | 880 |
| Height (mm) | 1350 |
| Dry Weight (kg) | 135 |
| Sound Level | |
| 7m dB (A) 1500/1800 rpm | 55 | 59 |
