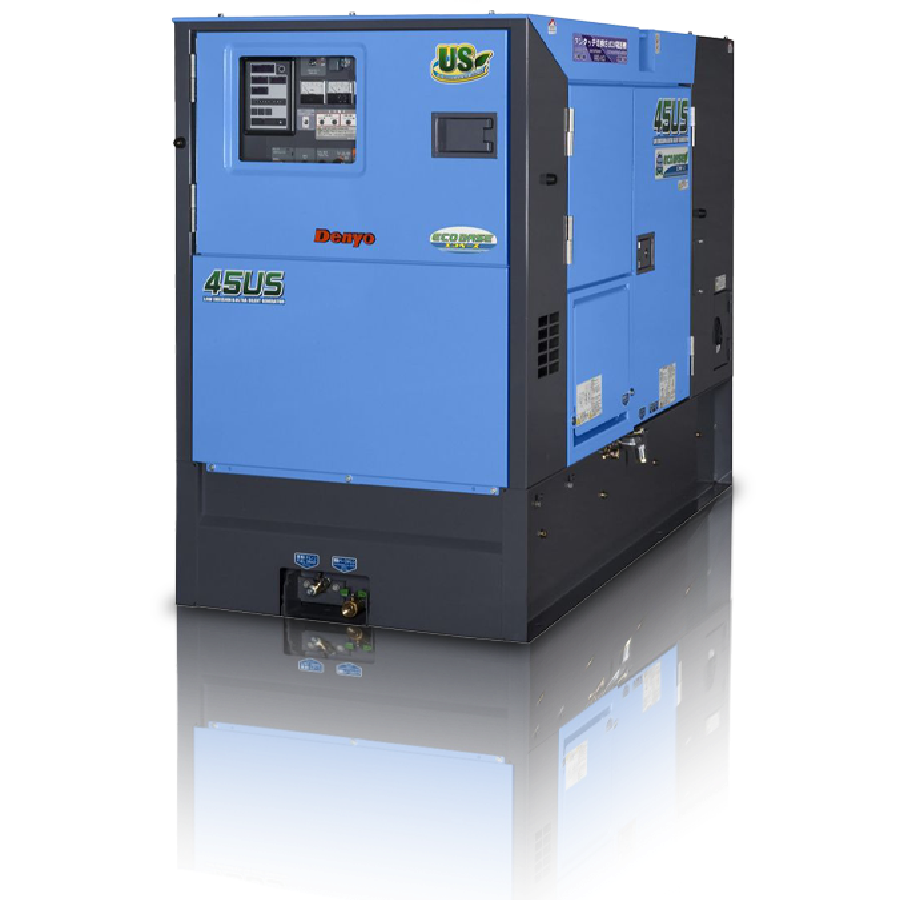

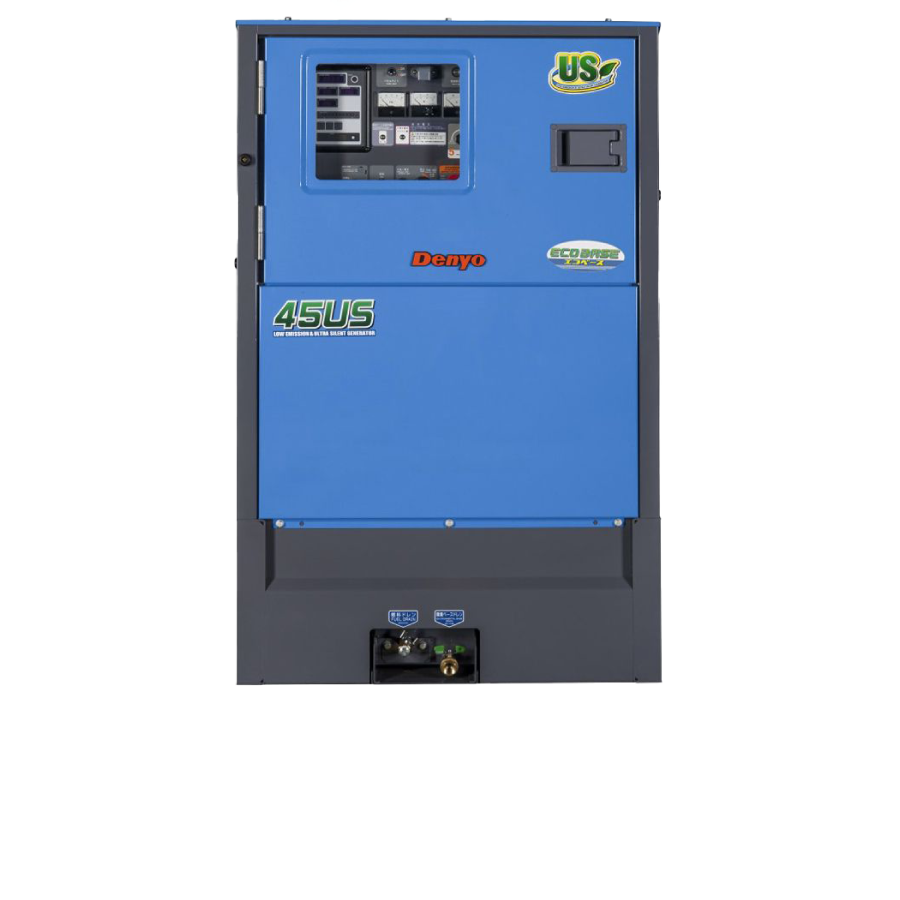

DCA-45USKE
- Ultra-silent 45 kVA output for regulated sound environments
- Compact form supports efficient transport and deployment
- Lower fuel consumption helps reduce total operating cost
- Designed for residential backup in regulated communities
Share to
Specifications Table
| Alternator | |
|---|---|
| Frequency (Hz) | 50 | 60 |
| Output Rating (kVA) | Continuous: 37 | 45
Standby: 40.7 | 49.5 |
| No. of Phases | 3-Phase, 4-Wire |
| Rated Voltage | (5) Multi Voltage |
| Power Factor | 0.8 (Lagging) |
| Excitation | Brushless, Rotating Exciter (With A.V.R) |
| Engine | |
| Maker & Model | Kubota V3800-DI-T-K3A |
| Type | Inlined, Direct Injected, Turbocharged, Cooled EGR |
| Output Rating | PS/rpm: 51.6/1500 | 62/1800
kW/rpm: 38/1500 | 45.6/1800 |
| No. of Cylinders-Bore × Stroke (mm) | 4-100×120 |
| Piston Displacement (L) | 3.769 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 6.7 | 8.5 |
| Lube Oil Sump Capacity (L) | 13.2 |
| Battery x Quantity | 115D31R × 1 |
| Fuel Tank Capacity (L) | 170 |
| Unit | |
| Length (mm) | 1990 |
| Width (mm) | 950 |
| Height (mm) | 1490 |
| Dry Weight (kg) | 1160 |
| Sound Level | |
| 7m dB (A) 1500/1800 rpm | 50 | 54 |
