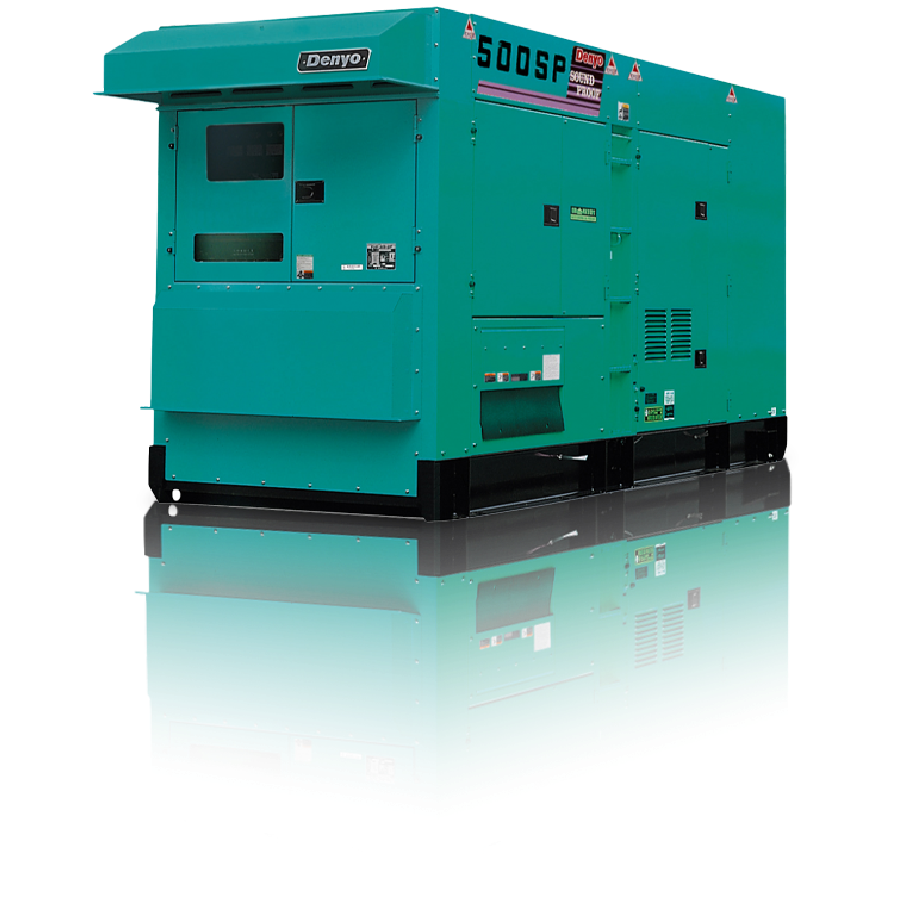

DCA-500SPK
- Delivers dependable 500 kVA power for critical operations
- Adaptable settings fit diverse international standards
- Advanced airflow design maintains lower operating noise
- Heavy-duty components support extended runtimes reliably
Share to
Specifications Table
| Alternator | |
|---|---|
| Frequency (Hz) | 50 | 60 |
| Output Rating (kVA) | Continuous: 450 | 500
Standby: 495 | 550 |
| No. of Phases | 3-Phase, 4-Wire |
| Rated Voltage | (2) Dual Voltage |
| Power Factor | 0.8 (Lagging) |
| Excitation | Brushless, Rotating Exciter (With A.V.R) |
| Engine | |
| Maker & Model | Komatsu SA6D170-B-1 |
| Type | Inlined, Direct Injected, Turbocharged, Aftercooled |
| Output Rating | PS/rpm: 520/1500 | 580/1800
kW/rpm: 382/1500 | 427/1800 |
| No. of Cylinders-Bore × Stroke (mm) | 6-170×170 |
| Piston Displacement (L) | 23.150 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 69.5 | 83.1 |
| Lube Oil Sump Capacity (L) | 119 |
| Battery x Quantity | 190H52 × 2 or 210H52 x 2 |
| Fuel Tank Capacity (L) | 490 |
| Unit | |
| Length (mm) | 5480 (with visor) |
| Width (mm) | 1650 |
| Height (mm) | 2400 |
| Dry Weight (kg) | 8540 |
| Sound Level | |
| 7m dB (A) 1500/1800 rpm | 68 | 71 |
