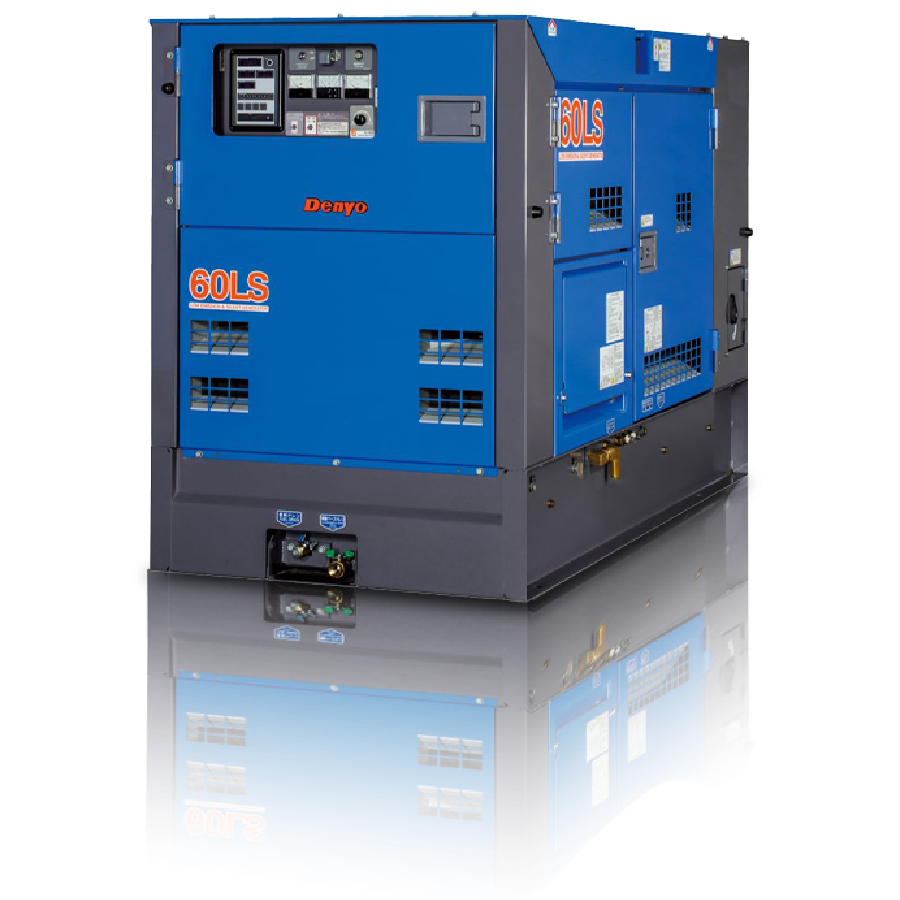

DCA-60LSIE
- Low-noise performance ideal for mixed-use project locations
- Fuel-efficient performance helps reduce operating costs
- Stage-III compliant engine meets strict emission standards
- Eco-Base prevents fuel spills and environmental impact
Share to
Specifications Table
| Alternator | |
|---|---|
| Frequency (Hz) | 50 | 60 |
| Output Rating (kVA) | Continuous: 50 | 60
Standby: 55 | 66 |
| No. of Phases | 3-Phase, 4-Wire |
| Rated Voltage | 50Hz: 190~220 / 380~440
60Hz: 190~240 / 380~480 |
| Power Factor | 0.8 (Lagging) |
| Excitation | Brushless, Rotating Exciter (With A.V.R) |
| Engine | |
| Maker & Model | Isuzu BJ-4JJ1X |
| Type | Common Rail, Inlined, Direct Injected, Turbocharged |
| Output Rating | PS/rpm: 65.1/1500 | 77.6/1800
kW/rpm: 47.9/1500 | 57.1/1800 |
| No. of Cylinders-Bore × Stroke (mm) | 4-95.4×104.9 |
| Piston Displacement (L) | 2.999 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 8.6 | 10.3 |
| Lube Oil Sump Capacity (L) | 15 |
| Battery x Quantity | 115D31R × 1 |
| Fuel Tank Capacity (L) | 140 |
| Unit | |
| Length (mm) | 2090 |
| Width (mm) | 980 |
| Height (mm) | 1350 |
| Dry Weight (kg) | 1260 |
| Sound Level | |
| 7m dB (A) 1500/1800 rpm | 59 | 63 |
