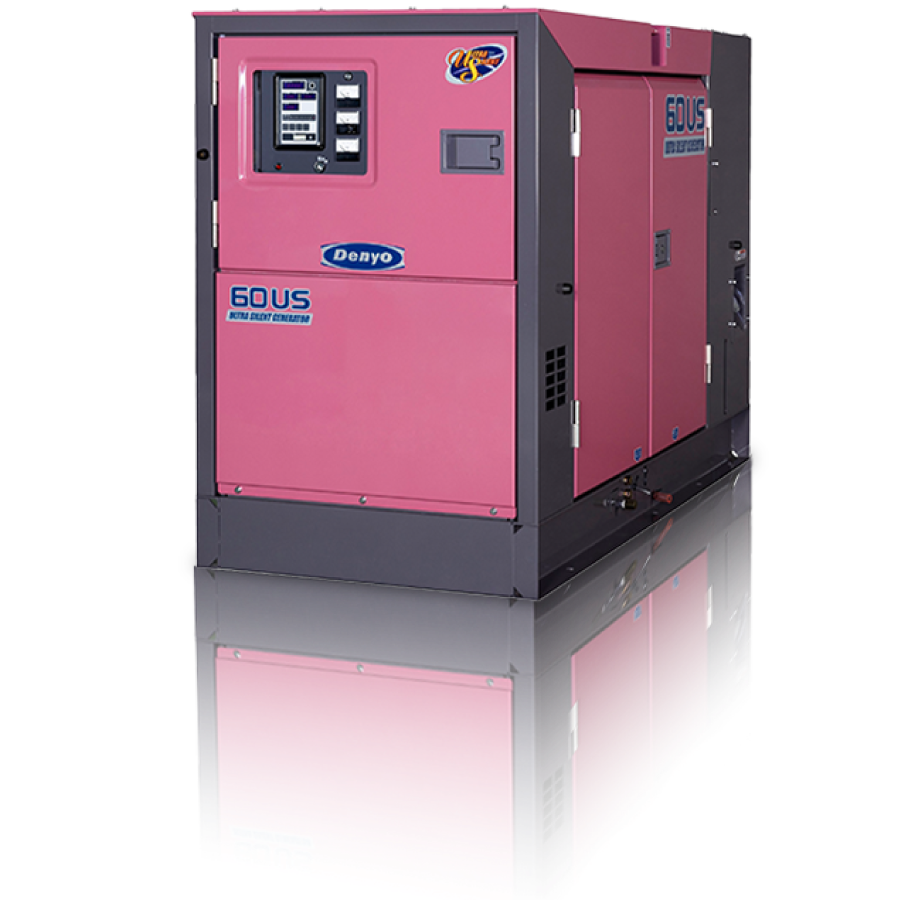

DCA-60USI
- Ultra-silent 60 kVA output for regulated noise zones
- Compact enclosure enables easier transport and setup
- Lower fuel consumption helps reduce total operating cost
- Designed for residential backup in a regulated environment
Share to
Specifications Table
| Alternator | |
|---|---|
| Frequency (Hz) | 50 | 60 |
| Output Rating (kVA) | Continuous: 50 | 60
Standby: 55 | 66 |
| No. of Phases | 3-Phase, 4-Wire |
| Rated Voltage | (2) Dual Voltage |
| Power Factor | 0.8 (Lagging) |
| Excitation | Brushless, Rotating Exciter (With A.V.R) |
| Engine | |
| Maker & Model | Isuzu BB-4BG1T |
| Type | Inlined, Direct Injected, Turbocharged |
| Output Rating | PS/rpm: 65/1500 | 77/1800
kW/rpm: 47.9/1500 | 57.1/1800 |
| No. of Cylinders-Bore × Stroke (mm) | 4-105×125 |
| Piston Displacement (L) | 4.329 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 8.6 | 10.5 |
| Lube Oil Sump Capacity (L) | 13.2 |
| Battery x Quantity | 120E41R × 1 |
| Fuel Tank Capacity (L) | 170 |
| Unit | |
| Length (mm) | 2200 |
| Width (mm) | 950 |
| Height (mm) | 1450 |
| Dry Weight (kg) | 1310 |
| Sound Level | |
| 7m dB (A) 1500/1800 rpm | 51 | 55 |
