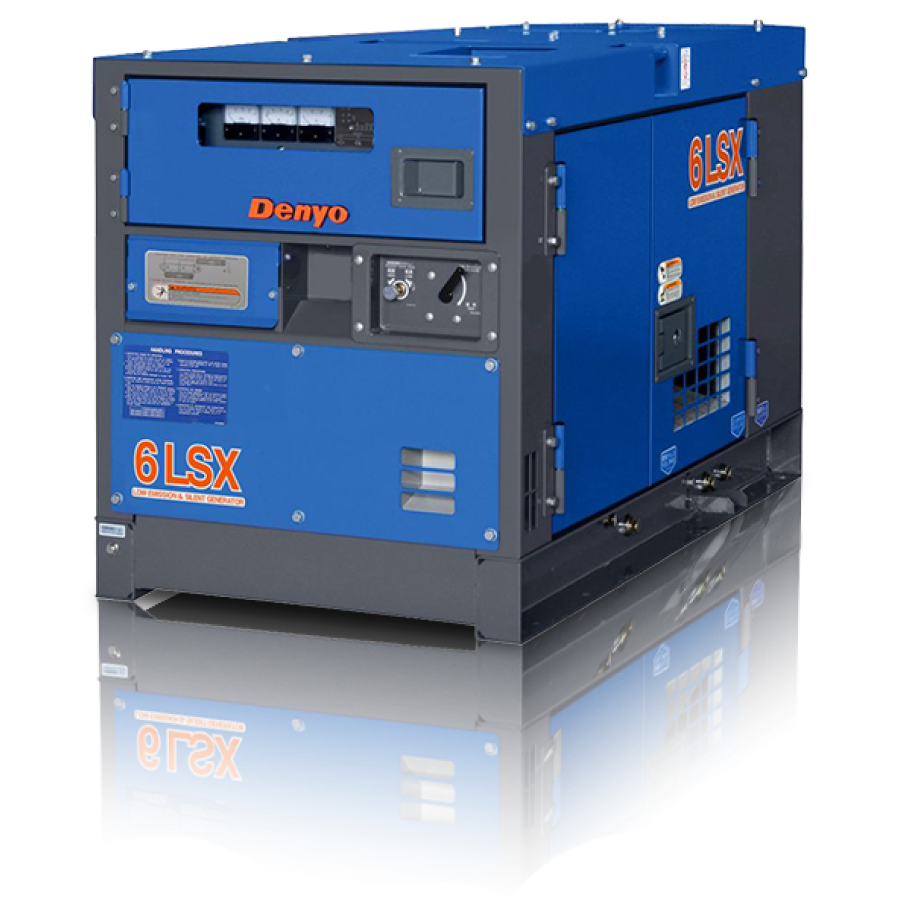

DCA-6LSX
- Patented exciter system improves motor starting under load
- Brushless generator eliminates the need for voltage regulation
- Tool-free air bleeding is achieved simply by cranking
- Wide side-door openings enable fast maintenance access
Share to
Specifications Table
| Alternator | |
|---|---|
| Frequency (Hz) | 50 | 60 |
| Output Rating (kVA) | 5 | 6 |
| No. of Phases | Single Phase, 2-Wire |
| Rated Voltage | 50Hz: 100/200
60Hz: 100/110/120/200/220/240 |
| Power Factor | 1.0 |
| Excitation | Brushless (with AVR) |
| Engine | |
| Maker & Model | Kubota D905-K3A |
| Type | Inlined, Swirl Chambered |
| Output Rating | PS/rpm: 8.7/1500 | 10.5/1800
kW/rpm: 6.4/1500 | 7.7/1800 |
| No. of Cylinders | 3 |
| Piston Displacement (L) | 0.898 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 1.5 | 1.8 |
| Bore × Stroke (mm) | 72×73.6 |
| Battery x Quantity | 55B24 x 1 |
| Fuel Tank Capacity (L) | 36 |
| Unit | |
| Length (mm) | 1230 |
| Width (mm) | 650 |
| Height (mm) | 760 |
| Dry Weight (kg) | 379 |
| Sound Level | |
| 7m dB (A) | 54 | 57 |
