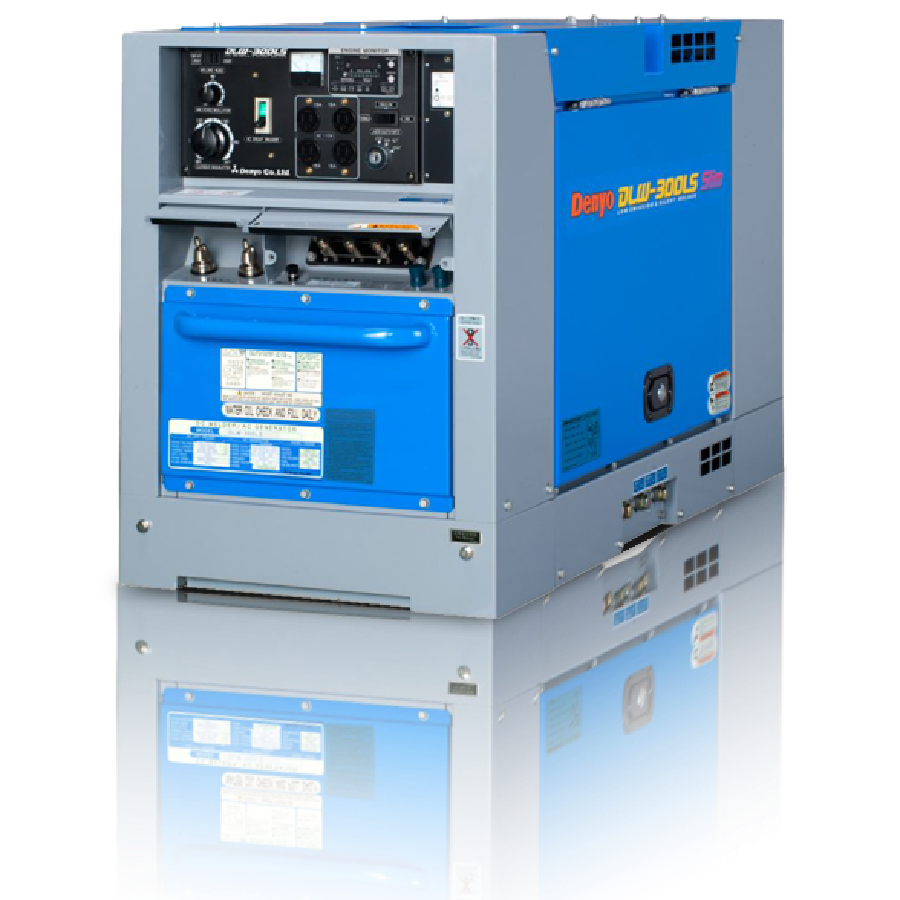

DLW-300LS

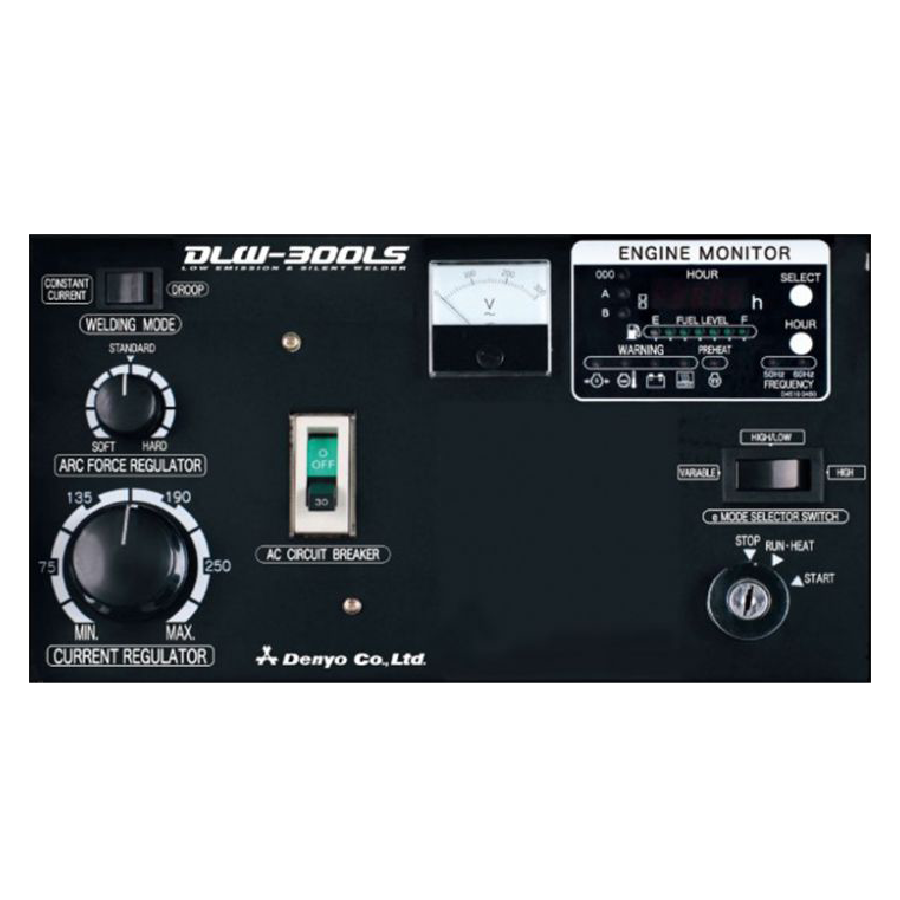

- Mode selector switch optimizes welding settings instantly
- Stable arc performance supports high-quality welding
- Arc force regulator maintains consistent penetration
- E-mode improves fuel efficiency during low loads
Share to
Specifications Table
| DC Welding Power | |
|---|---|
| Rated Output (kW) | 7.9 / 8.74 |
| Rated Current (A) | 260 / 280 |
| Rated Voltage (V) | 30.4 / 31.2 |
| Welding Current Range (A) | 30 – 280 / 30 – 300 |
| Welding Voltage Range (V) | – |
| Rated Duty Cycle (%) | 100 |
| Applicable Electrode (mm) | 2-6 |
| Generator Output | |
| Frequency (Hz) | 50 / 60 |
| Rated Output (kVA) | 10.4 / 11.4 |
| Rated Voltage (V) | 380 (200-240 or 380-440) |
| No. of Phases | 3-Phase, 4-Wire |
| Power Factor | 0.8 (Lagging) |
| Engine | |
| Maker & Model | Yanmar 3-3TNM68G |
| Type | 4-Cycle, Vertical, Water-Cooled with Radiator |
| Rated Output (kW) | 12.5 / 15 |
| Rated Speed (rpm) | 3000 / 3600 |
| Displacement (L) | 0.784 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 1.96 / 2.34 |
| Fuel Tank Capacity (L) | 36 |
| Battery x Quantity | 55B24Lx 1 |
| Unit | |
| Length (mm) | 1410 |
| Width (mm) | 560 |
| Height (mm) | 770 |
| Dry Weight (kg) | 379 |
| Sound Level | |
| 7m dB (A) | 63 / 65 |
