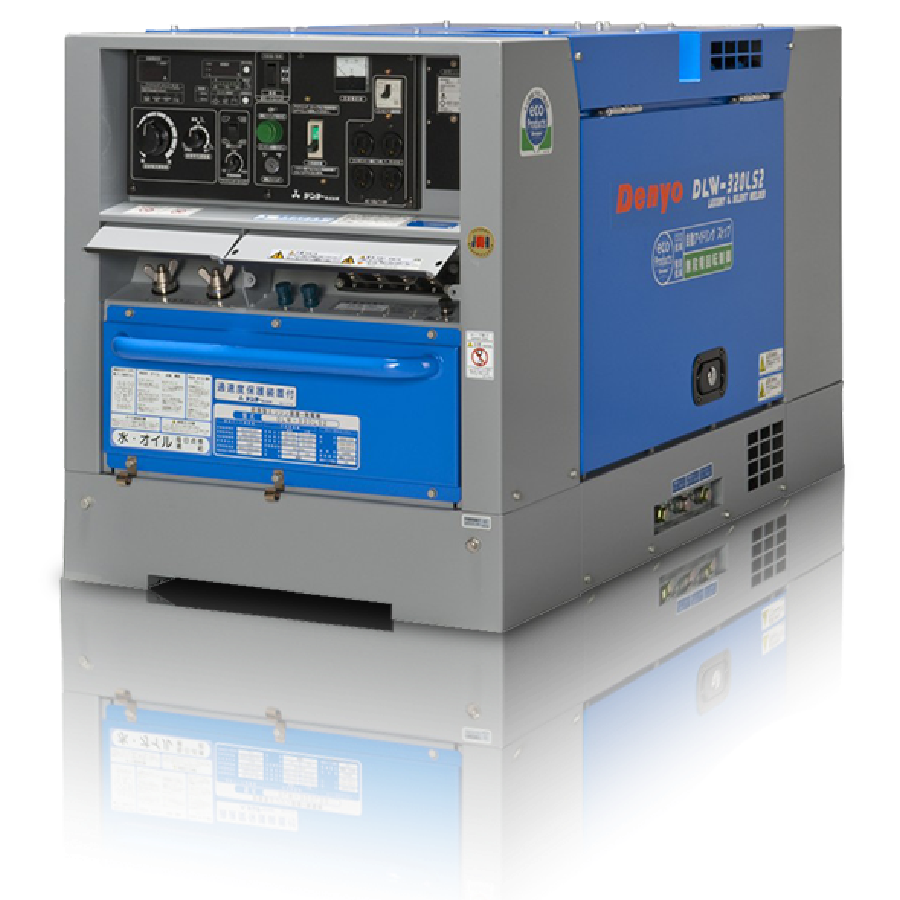

DLW-320LS2
- Mode selector switch adjusts welding modes instantly
- Smart Stick automatically stops and restarts the engine
- Arc force regulator maintains arc stability
- E-mode saves fuel during lighter welding work
Share to
Specifications Table
| DC Welding Power | |
|---|---|
| Rated Output (kW) | 7.9 / 8.7 |
| Rated Current (A) | 260 / 280 |
| Rated Voltage (V) | 30.4 / 31.2 |
| Welding Current Range (A) | 30 – 300 / 30 – 320 |
| Welding Voltage Range (V) | – |
| Rated Duty Cycle (%) | 100 |
| Applicable Electrode (mm) | 2-6 |
| Generator Output | |
| Frequency (Hz) | 50 / 60 |
| Rated Output (kVA) | 10.7 / 11.8 |
| Rated Voltage (V) | 380 (200-240 or 380-440) |
| No. of Phases | 3-Phase, 4-Wire |
| Power Factor | 0.8 (Lagging) |
| Engine | |
| Maker & Model | Kubota D902-K3A |
| Type | 4-Cycle, Vertical, Water-Cooled with Radiator |
| Rated Output (kW) | 14.9 / 17.8 |
| Rated Speed (rpm) | 3000 / 3600 |
| Displacement (L) | 0.898 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 2.18 / 2.56 |
| Fuel Tank Capacity (L) | 36 |
| Battery x Quantity | 55B24Lx 1 |
| Unit | |
| Length (mm) | 1410 |
| Width (mm) | 680 |
| Height (mm) | 760 |
| Dry Weight (kg) | 386 |
| Sound Level | |
| 7m dB (A) | 64 / 66 |
