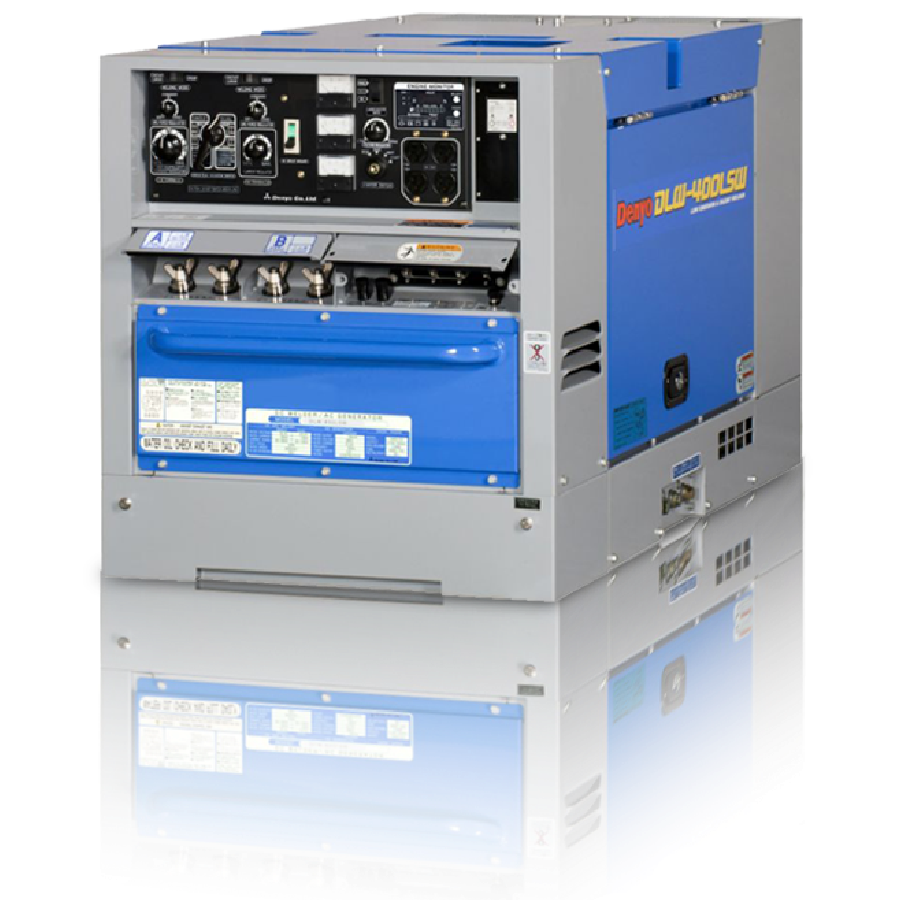

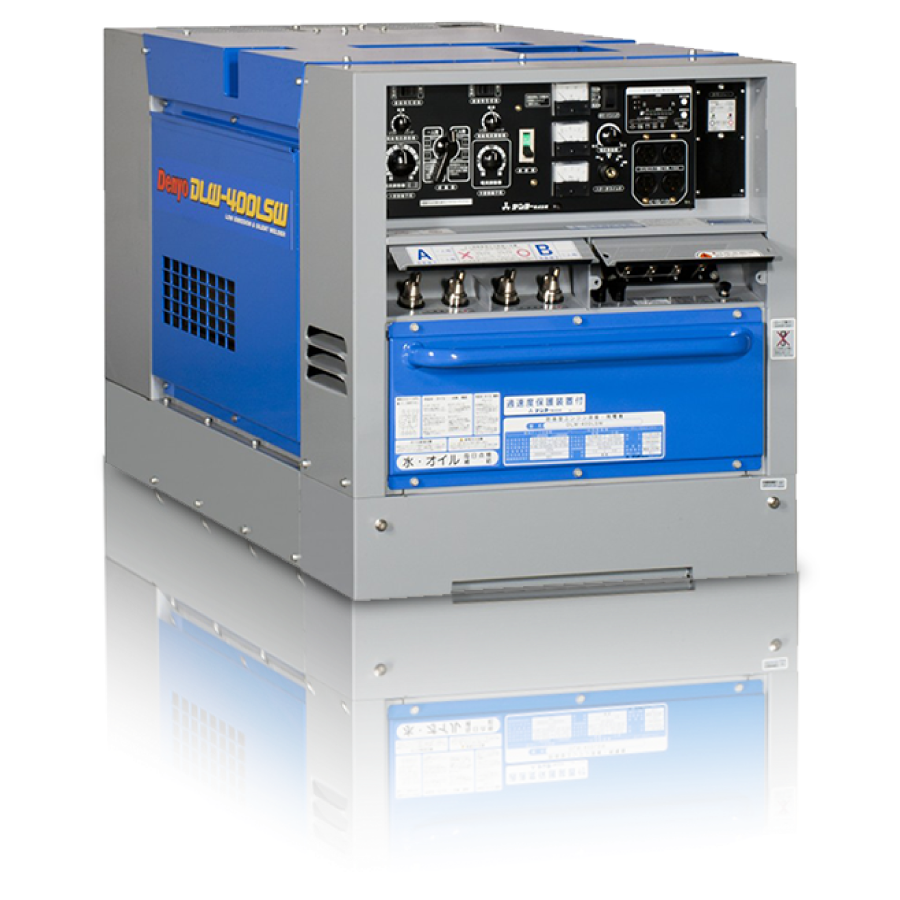

DLW-400LSW
- Dual-operator mode powers two welders simultaneously

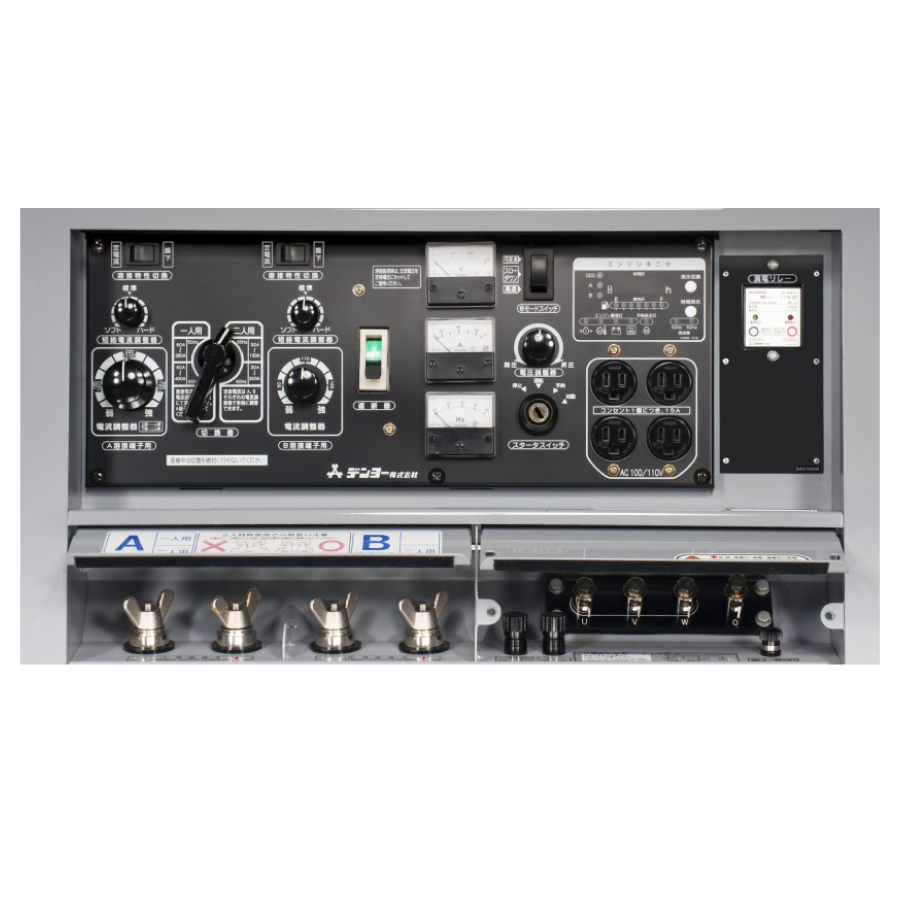

- Mode selector switch optimizes welding output instantly
- Compact design improves mobility across active worksites
- Reliable power delivery supports heavy-duty welding tasks
Share to
Specifications Table
| DC Welding Power | |
|---|---|
| Rated Output (kW) | Single: 12.9 / 13.9
Dual: 5.07 x 2 / 5.42 x 2 |
| Rated Current (A) | Single: 370 / 390
Dual: 185 / 195 |
| Rated Voltage (V) | Single: 34.8 / 35.6
Dual: 27.4 / 27.8 |
| Welding Current Range (A) | Single: 60 – 380 / 60 – 400
Dual: 30 – 190 / 30 – 200 |
| Welding Voltage Range (V) | – |
| Rated Duty Cycle (%) | 100 |
| Applicable Electrode (mm) | Single: 2-8
Dual: 2-4 |
| Generator Output | |
| Frequency (Hz) | 50 / 60 |
| Rated Output (kVA) | 15 |
| Rated Voltage (V) | 380 (200-240 or 380-440) |
| No. of Phases | 3-Phase, 4-Wire |
| Power Factor | 0.8 (Lagging) |
| Engine | |
| Maker & Model | Kubota D1105-K3B |
| Type | 4-Cycle, Vertical, Water-Cooled with Radiator |
| Rated Output (kW) | 17.8 / 20.7 |
| Rated Speed (rpm) | 3000 / 3600 |
| Displacement (L) | 1.123 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 3.14 / 3.69 |
| Fuel Tank Capacity (L) | 42 |
| Battery x Quantity | 55B24Lx 1 |
| Unit | |
| Length (mm) | 1520 |
| Width (mm) | 700 |
| Height (mm) | 770 |
| Dry Weight (kg) | 471 |
| Sound Level | |
| 7m dB (A) | 64 / 68 |
