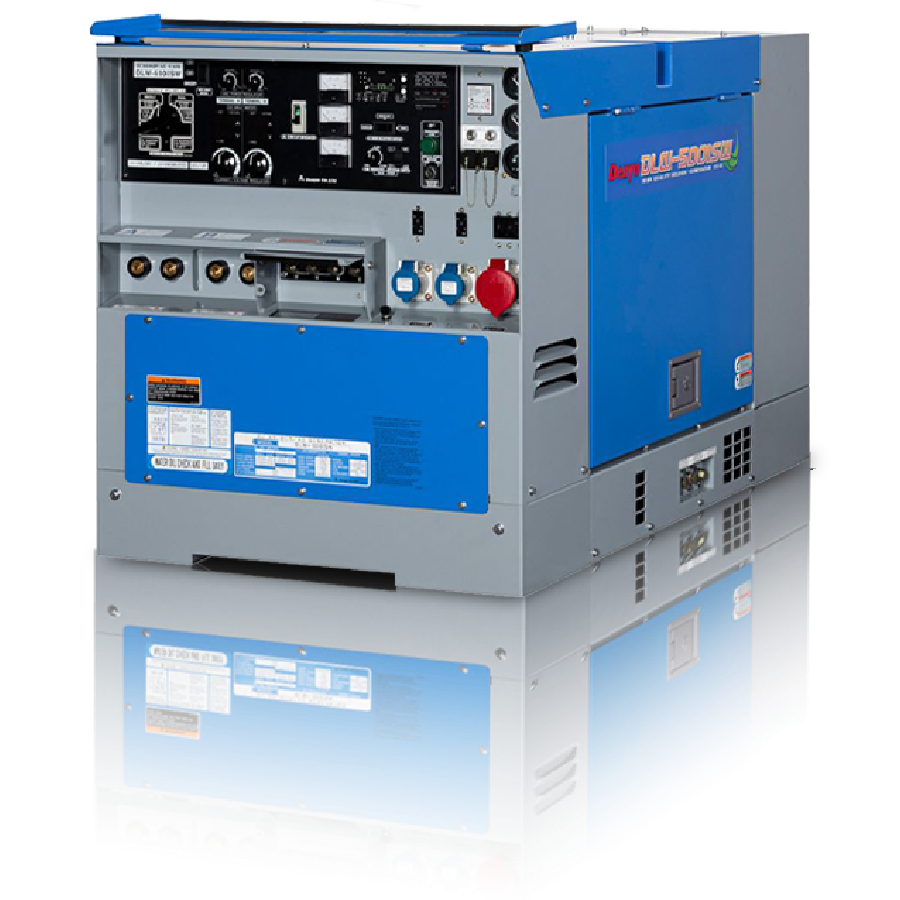

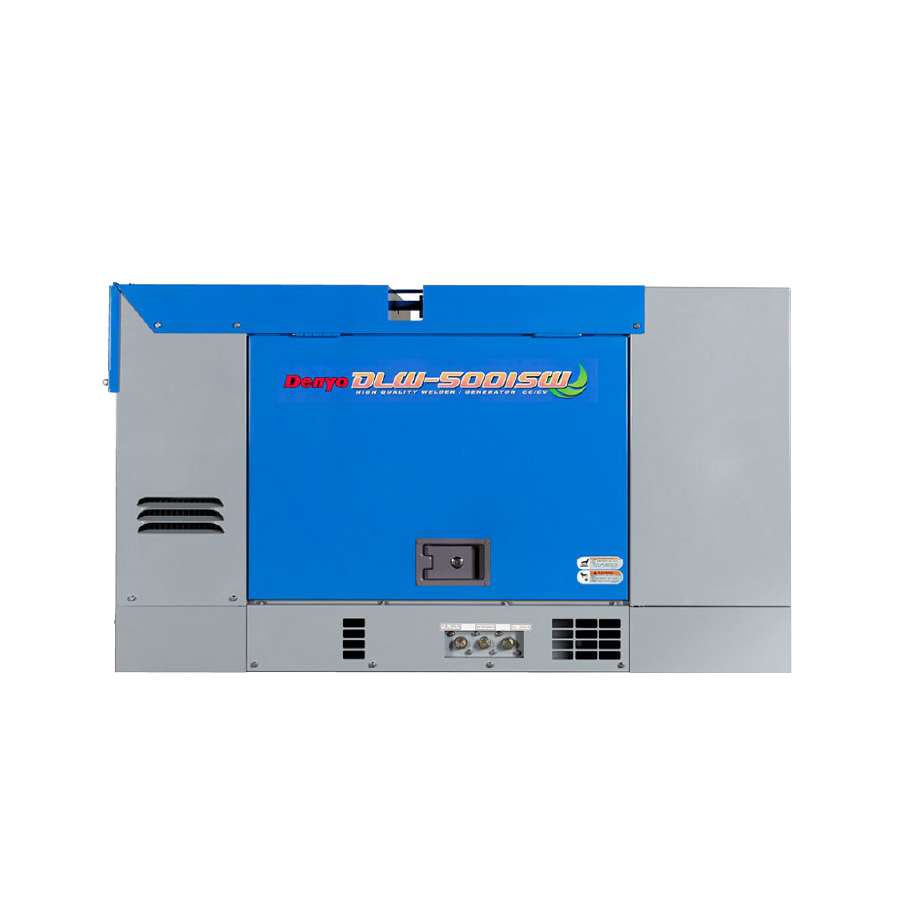

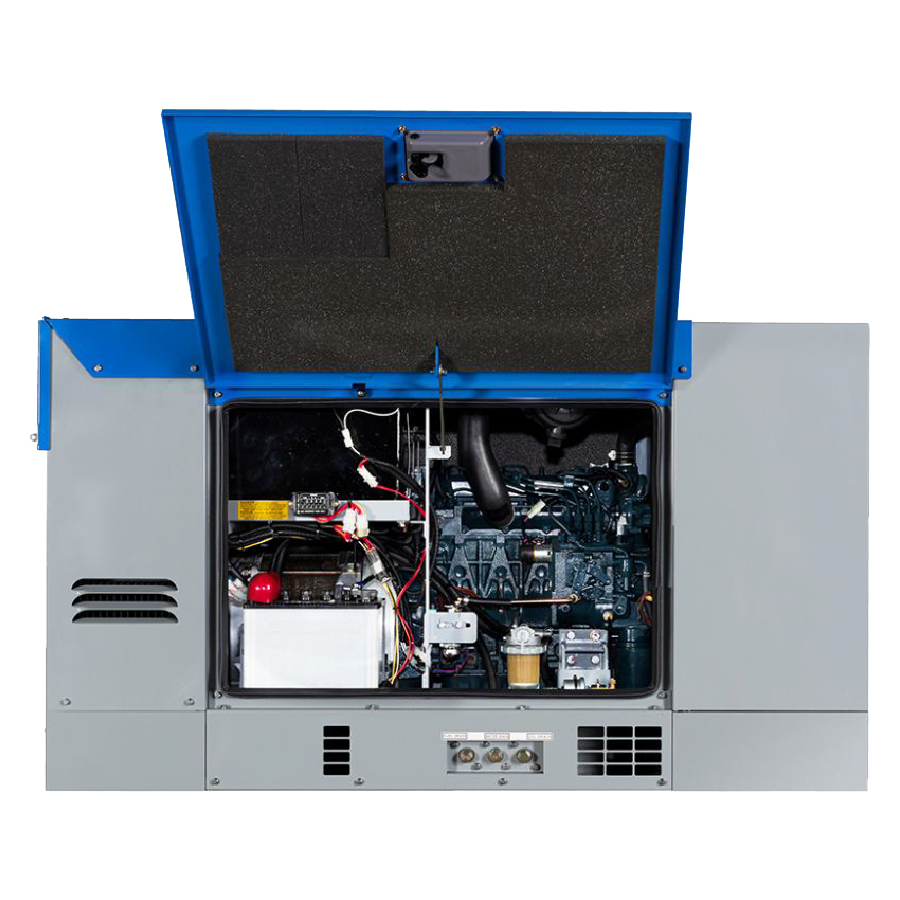

DLW-500ISW
- Smart-Stick automatically stops engine when welding pauses
- 15 kVA AC generator output supports auxiliary power needs
- 480A welding current handles heavy industrial applications
- Supports dual-welding operation for higher productivity
Share to
Specifications Table
| DC Welding Power | |
|---|---|
| Rated Output (kW) | CC: 17.1 / CV: 16.4 | CC: 18.8 / CV:18.2 |
| Rated Current (A) | Single: 450 | 480
Dual: 225 | 240 |
| Rated Voltage (V) | (Single) CC: 38 / CV: 36.5 | (Single) CC: 39.2 / CV: 38
(Dual) CC: 29 / CV: 25.3 | (Dual) CC: 29.6 / CV: 26 |
| Welding Current Range (A) | (Single) CC: 60 – 480 | (Single) CC: 60 – 500
(Dual) CC: 30 – 240 | (Dual) CC: 30 – 250 |
| Welding Voltage Range (V) | (Single) CV: 14 – 37 | (Single) CV: 14 – 40
(Dual) CV: 14 – 29 | (Dual) CV: 14 – 29 |
| Rated Duty Cycle (%) | 60 |
| Applicable Electrode (mm) | Single: 2-8
Dual: 2-5 |
| Generator Output | |
| Frequency (Hz) | 50 | 60 |
| Rated Output (kVA) | 15 |
| Rated Voltage (V) | 380 (200-240 or 380-440) |
| No. of Phases | 3-Phase, 4-Wire |
| Power Factor | 0.8 (Lagging) |
| Engine | |
| Maker & Model | Kubota V1505-K3B |
| Type | 4-Cycle, Vertical, Water-Cooled with Radiator |
| Rated Output (kW) | 24.6 / 27.1 |
| Rated Speed (rpm) | 3000 / 3600 |
| Displacement (L) | 1.498 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 3.45 / 3.69 |
| Fuel Tank Capacity (L) | 56 |
| Battery x Quantity | 80D26R x 1 |
| Unit | |
| Length (mm) | 1550 |
| Width (mm) | 800 |
| Height (mm) | 885 |
| Dry Weight (kg) | 537 |
| Sound Level | |
| 7m dB (A) | 66 / 70 |
