DSA-32HK5

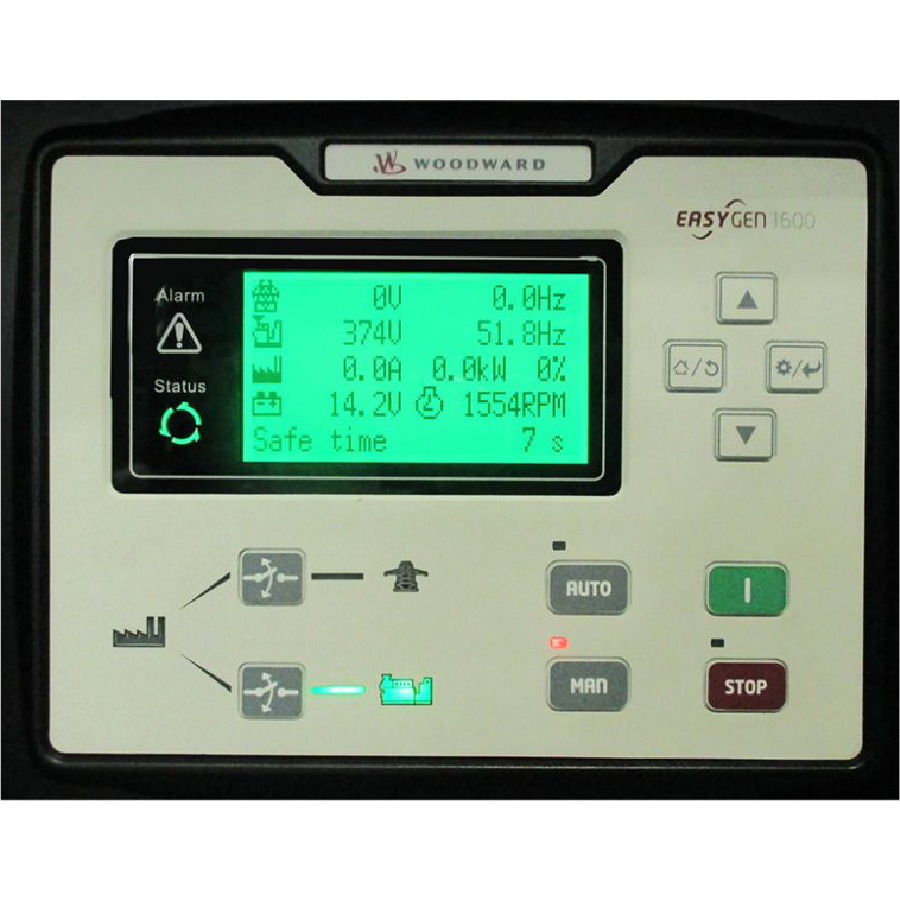

- Built-in AMF controller enables fully automatic operation
- Brushless AVR alternator delivers precise voltage regulation
- Wide side-door design allows quick maintenance access
- Compact body improves transport and installation efficiency
Share to
Specifications Table
| Alternator | |
|---|---|
| Frequency (Hz) | 50 |
| Output Rating (kVA) | Prime: 30
Standby: 31.5 |
| No. of Phases | 3-Phase, 4-Wire |
| Rated Voltage (V) | 380 – 415 |
| Power Factor | 0.8 (Lagging) |
| Excitation | Brushless (With A.V.R) |
| Engine | |
| Maker & Model | Kubota V3300-EB |
| Type | 4-Cycle, Water-Cooled, Diesel Engine, Swirl Chamber Type |
| Output Rating | PS/rpm: 38.4/1500
kW/rpm: 28.3/1500 |
| No. of Cylinders-Bore × Stroke (mm) | 4-98×100 |
| Piston Displacement (L) | 3.318 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Coolant Capacity (L) | 10.5 |
| Lube Oil Capacity (L) | 13.2 |
| Battery x Quantity | 95D31R × 1 |
| Fuel Tank Capacity (L) | 62 |
| Unit | |
| Length (mm) | 1800 |
| Width (mm) | 750 |
| Height (mm) | 1000 |
| Dry Weight (kg) | 780 |
| Sound Level | |
| 7m dB (A) 1500/1800 rpm | 65 |
