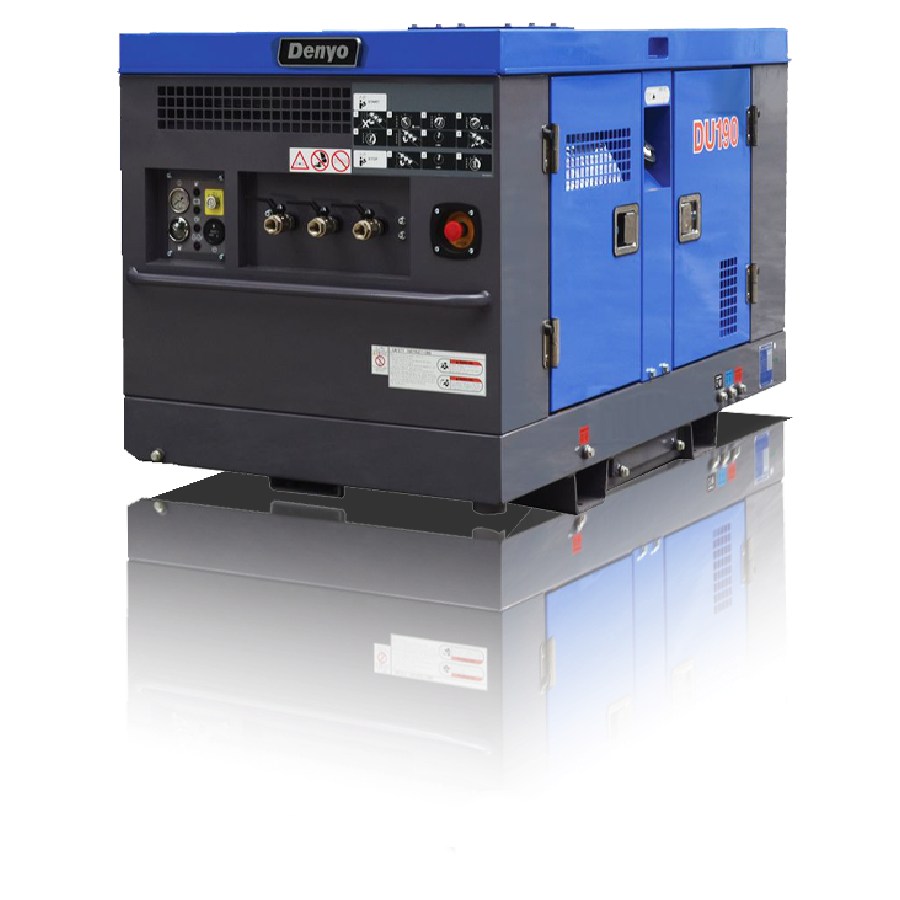

DU-190
- Compact footprint allows easy worksite positioning

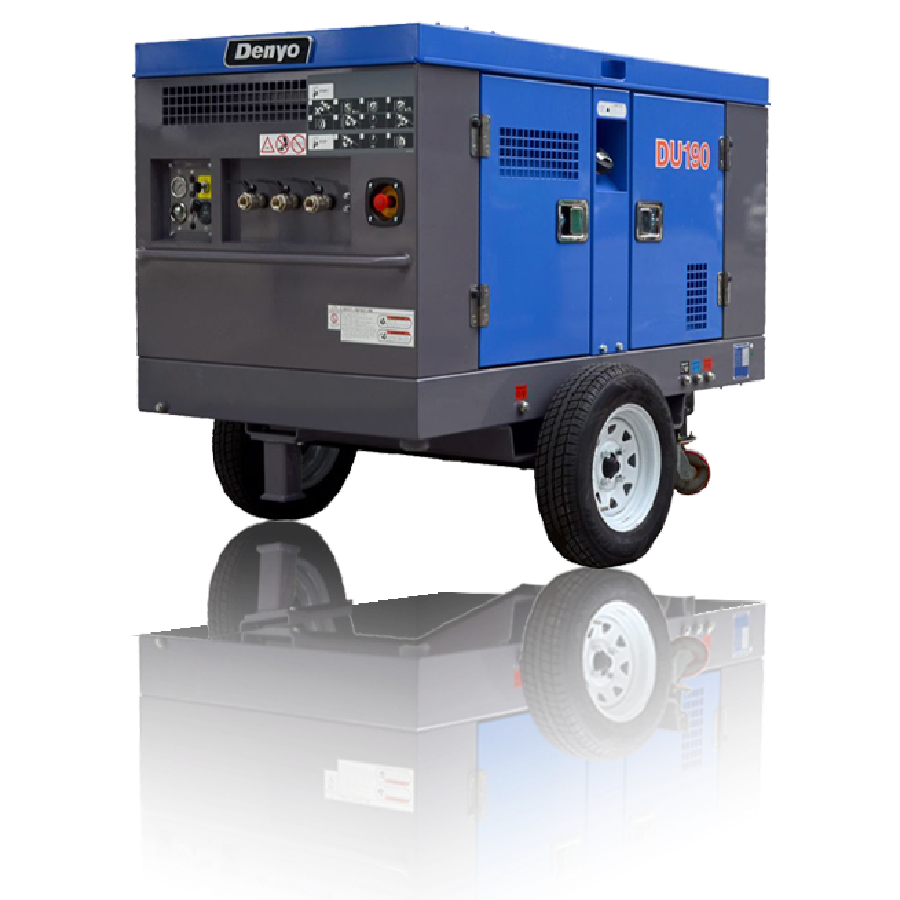

- Optional trailer enables quick on-site mobility
- Simple controls improve operator ease and safety
- Large service doors support fast maintenance
Share to
Specifications Table
| Compressor | |
|---|---|
| Type | Single-Stage, Oil-Injected Screw Compressor |
| Rated Operating Pressure Bar (psi) | 7 (100) |
| Free Air Delivery m³/min (cfm) | 4.87 (172) |
| Engine | |
| Maker & Model | Kubota V1505T |
| No. of Cylinders | 4 |
| Power Output (kW) | 32.5 |
| Full Load RPM (rpm) | 3000 |
| Unload RPM (rpm) | 1600 |
| Engine Oil Capacity (L) | 5.5 |
| Compressor Oil Capacity (L) | 9 |
| Fuel Tank Capacity (L) | 62 |
| Coolant Capacity (L) | 8.5 |
| Unit | |
| Length (mm) | 1870 |
| Width (mm) | 950 |
| Height (mm) | 1070 |
| Dry Weight (kg) | 680 |
| Sound Level | |
| 7m dB (A) | 70 |
