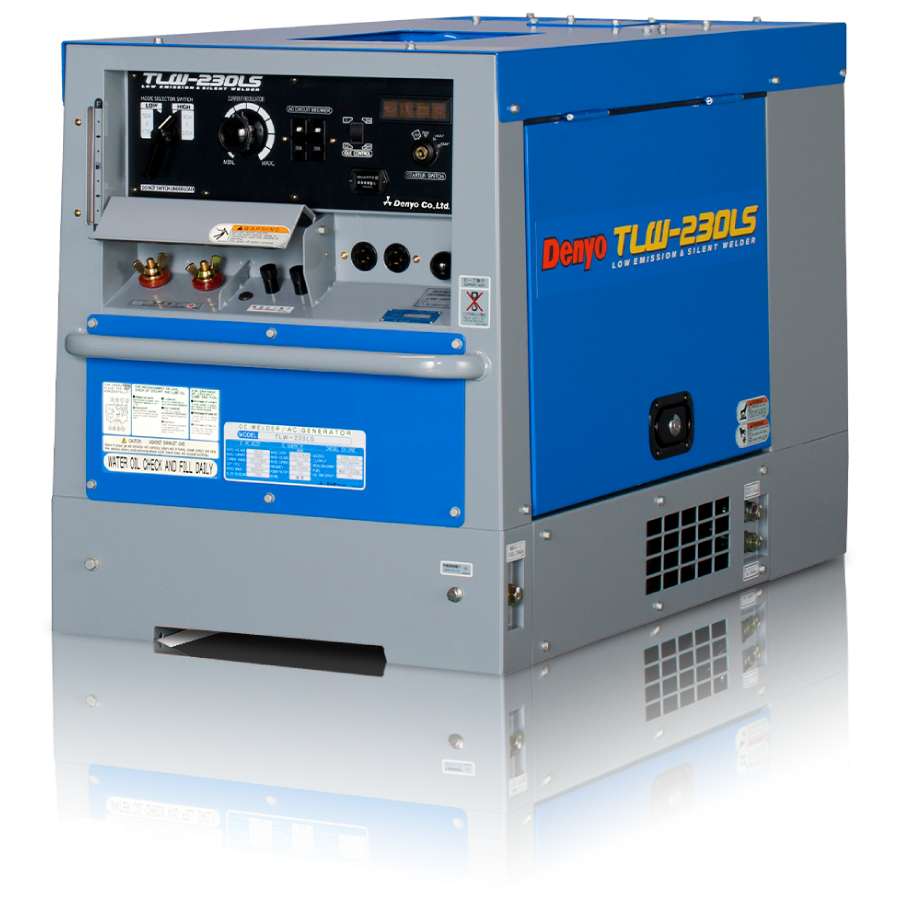

TLW-230LS
- 230-amp welding output handles varied job requirements
- Compact diesel design improves mobility across worksites
- Single-phase generator output powers essential equipment
- Tier-3 engine meets strict emission standards
Share to
Specifications Table
| DC Welding Power | |
|---|---|
| Rated Output (kW) | 5.6 |
| Rated Current (A) | 200 |
| Rated Voltage (V) | 28 |
| Welding Current Range (A) | 50 – 230 |
| Welding Voltage Range (V) | – |
| Rated Duty Cycle (%) | 50 |
| Applicable Electrode (mm) | 2.6 – 5 |
| Generator Output | |
| Frequency (Hz) | 50 / 60 |
| Rated Output (kVA) | 5 / 5.5 |
| Rated Voltage (V) | 100 / 110 / 120 / 200 / 220 / 230 / 240 |
| No. of Phases | Single-Phase, 2-Wire |
| Power Factor | 1.0 |
| Engine | |
| Maker & Model | Kubota Z482-K3A |
| Type | 4-Cycle, Vertical, Water-Cooled with Radiator |
| Rated Output (kW) | 9.6 |
| Rated Speed (rpm) | 3600 |
| Displacement (L) | 0.479 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Consumption (L/h) | 1.6 |
| Fuel Tank Capacity (L) | 19 |
| Battery x Quantity | 36B20L x 1 |
| Unit | |
| Length (mm) | 1220 |
| Width (mm) | 610 |
| Height (mm) | 720 |
| Dry Weight (kg) | 285 |
| Sound Level | |
| 7m dB (A) | 60 / 63 |
